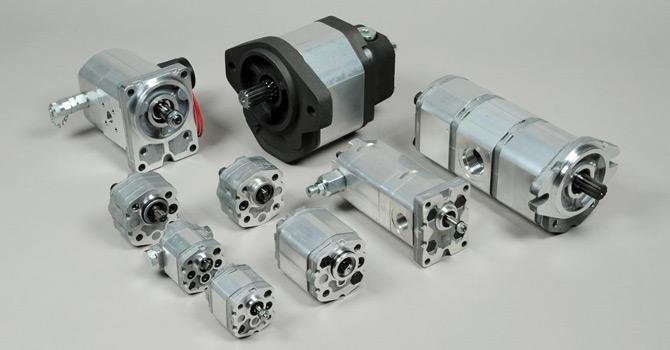

A hydraulic gear pump is a fundamental device in hydraulic systems, with its unique design and characteristics making it suitable for a wide range of industrial and mechanical applications.
Working Principle
The working principle of a hydraulic gear pump is relatively straightforward. It consists of two meshing gears, typically a driving gear and a driven gear, enclosed within a housing. As the driving gear rotates, it forces the driven gear to turn in the opposite direction. The teeth of the gears create chambers between them and the housing. During the rotation, the volume of these chambers changes. On the inlet side, as the gears start to unmesh, the volume of the chamber increases, creating a low-pressure area. This causes the hydraulic fluid to be drawn into the pump from the reservoir. As the gears continue to rotate and start to remesh on the outlet side, the volume of the chamber decreases, compressing the fluid and forcing it out at a higher pressure through the outlet port. This continuous process of fluid intake and expulsion generates a steady flow of pressurized hydraulic fluid.
Working Scenarios
Hydraulic gear pumps are often used in applications where a relatively simple and cost-effective hydraulic power solution is required. They are commonly found in mobile equipment such as agricultural machinery. For example, in tractors, gear pumps supply the hydraulic power needed for functions like lifting and lowering implements, operating the power steering, and controlling the hydraulic brakes. In small construction equipment like skid-steer loaders, they are used to power the bucket and arm movements. They are also suitable for some industrial machinery where the hydraulic requirements are not overly demanding in terms of extremely high pressures or precise flow control. For instance, in conveyor systems, they can provide the necessary hydraulic force to drive the conveyor belts and adjust their tension.
Application Industries
The automotive industry is one of the main application areas. In addition to power steering and braking systems in some vehicles, they are used in automatic transmissions to provide the necessary hydraulic pressure for gear shifting. The agricultural industry heavily relies on hydraulic gear pumps. They are essential in various farming equipment for tasks such as operating irrigation systems, controlling the height and angle of harvesting equipment, and powering the hydraulic cylinders in plows and cultivators. The manufacturing industry also uses them in some simple hydraulic presses and material handling equipment. For example, in a small workshop, a hydraulic gear pump can be used to power a bench-mounted hydraulic press for tasks like bending and shaping metal sheets. Moreover, the marine industry utilizes them in some smaller boats and yachts for functions like steering and winch operation.
In conclusion, hydraulic gear pumps play a vital role in numerous industries and working scenarios. Their simple yet effective working principle, combined with their reliability and cost-efficiency, makes them a popular choice for a variety of hydraulic applications, from basic mobile equipment to some industrial processes.
