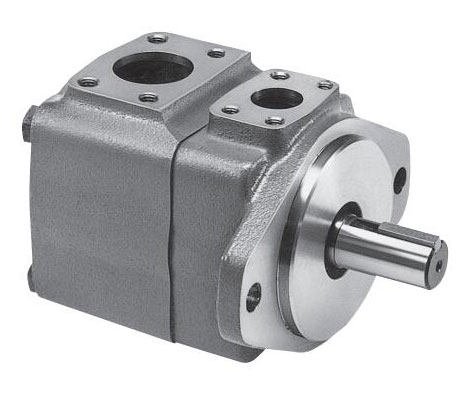

A hydraulic vane pump is a significant component in the realm of hydraulic systems, renowned for its efficient and reliable performance.
Working Principle
The operation of a hydraulic vane pump is based on the principle of eccentric rotation. Inside the pump housing, there is a rotor with several vanes that can slide in and out. The rotor is mounted eccentrically within the stator. As the rotor spins, the centrifugal force causes the vanes to extend and make contact with the inner surface of the stator. During the rotation, the volume between adjacent vanes increases as the rotor moves away from the inlet port. This decrease in pressure allows the hydraulic fluid to enter the pump chamber through the inlet. As the rotor continues to turn and approaches the outlet port, the volume between the vanes decreases, compressing the fluid and forcing it out through the outlet at a higher pressure. This continuous cycle of fluid intake and expulsion generates a steady flow of pressurized hydraulic fluid.
Working Scenarios
Hydraulic vane pumps are commonly employed in scenarios where a relatively smooth and continuous flow of hydraulic power is needed. They are often used in industrial machinery that requires moderate pressure and flow rates. For example, in machine tool applications such as lathes and milling machines, the vane pump provides the necessary hydraulic power to operate the tool feed mechanisms, ensuring precise and consistent movement. In the automotive industry, they can be found in some power steering systems, where they help in smoothly and effortlessly turning the vehicle’s wheels by providing the required hydraulic assistance. They are also suitable for use in light-duty construction equipment like small loaders and compact excavators, where they contribute to the efficient operation of various hydraulic functions such as bucket movement and boom lifting.
Application Industries
The manufacturing industry is a major beneficiary of hydraulic vane pumps. In factories, they are used in a wide range of equipment, from assembly line machinery to packaging equipment. Their ability to provide a consistent and controllable hydraulic force makes them ideal for tasks such as clamping, positioning, and material handling. The food and beverage industry also utilizes hydraulic vane pumps in some processing and packaging operations. Their clean and efficient operation is suitable for applications where hygiene and precision are important. In the plastics and rubber processing industry, vane pumps are used in injection molding machines and extruders to control the flow of molten materials. Additionally, the renewable energy sector, particularly in wind turbine pitch control systems, employs hydraulic vane pumps to adjust the angle of the turbine blades for optimal power generation and safety.
In summary, hydraulic vane pumps possess a unique working principle that enables them to function effectively in diverse working scenarios and across multiple application industries. Their contribution to the smooth and efficient operation of various mechanical systems is invaluable in modern industrial and technological contexts.
