All-Flo Diaphragm Pump A050-NP3-SS3E-S70

A050-NP3-SS3E-S70

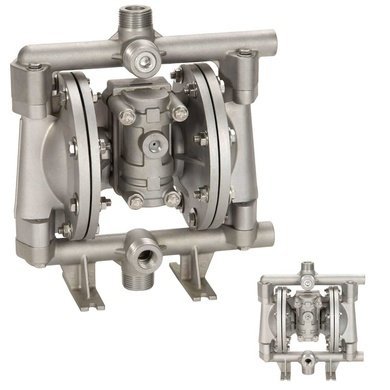

All-Flo A050-NP3-SS3E-S70 A Series A050 Bolted Metal 1/2″ Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2″ NPT Connections. Polypropylene Air Section, 316 Stainless Steel Liquid Section & Seats, Santoprene Diaphragms & Valve Balls, EPDM O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8″ (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-SS3E-M, Air End Kit AAK-050-P Available to order.

Air Chamber Polypropylene, Pneumatic Shift
Air Inlet 1/4″ FNPT
Air Supply Pressure 120 psi (8.3 bar) Maximum
Base Model Number A050
Configuration Suction/Discharge Right
Connection Type NPT
Construction Bolted
Diaphragm Santoprene
Discharge NPT (Inches) 1/2″
Material Santoprene
Maximum Flow (GPM) 15 gpm (56.8 lpm)

Max Suction Lift Dry: 15 ft (4.5 m); Wet: 31ft (9.4m)
Model Series A Series
Other Factors No Special Options
Product Notes Stainless Steel Hardware, Plastic Muffler
Pump Size 1/2″
Solids (Inches) 1/8″ (3.2 mm)
Suction NPT (Inches) 1/2″
Valve Balls Santoprene
Valve / Seat / O-Ring 316 Stainless Steel Seat / EPDM O-Rings
Wetted Parts 316 Stainless Steel
