All-Flo Diaphragm Pump A100-FPP-TTPT-S70

A100-FPP-TTPT-S70

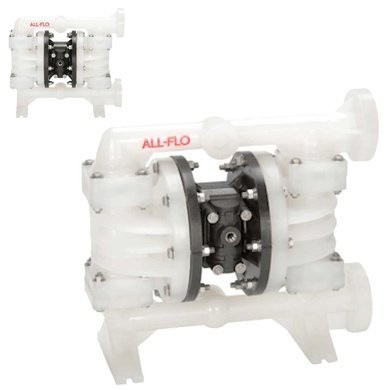

All-Flo A100-FPP-TTPT-S70 A Series A100 Bolted Plastic 1″ Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1″ ANSI / DIN Flange Connections. Polypropylene Air, Liquid Sections & Valve Seats, PTFE Diaphragms, Balls & O-Rings. 41 gpm (155.8 lpm) Maximum Flow, 1/4″ (6.2 mm) Max Solids. Wet End Repair Kit AWE-100-TTPT-P, Air End Kit AAK-100-P Available to order.

Air Chamber Polypropylene Intermediate-Pneumatic Shift
Air Inlet 1/4″ FNPT
Air Supply Pressure 120 psi (8.3 bar) Maximum
Base Model Number A100
Configuration Suction/Discharge Right
Connection Type ANSI / DIN Flange
Construction Bolted
Diaphragm PTFE
Discharge NPT (Inches) 1″
Material FDA Santoprene
Maximum Flow (GPM) 41 gpm (155.8 lpm)

Max Suction Lift Dry: 10 ft (3.0 m); Wet: 26 ft (7.9 m)
Model Series A Series
Other Factors No Special Options
Product Notes Stainless Steel Hardware, Standard Muffler
Pump Size 1″
Solids (Inches) 1/4″ (6.2 mm)
Suction NPT (Inches) 1″
Valve Balls PTFE
Valve / Seat / O-Ring Polypropylene Seat / PTFE O-Rings
Wetted Parts Polypropylene
