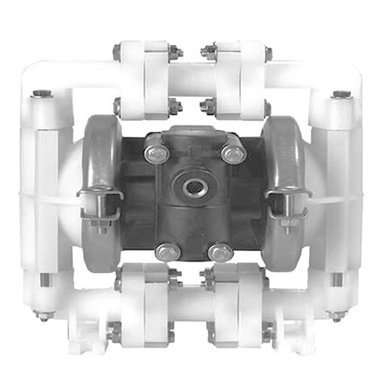

All-Flo Diaphragm Pump S050-BP3-GN3N-S70

S050-BP3-GN3N-S70

All-Flo S050-BP3-GN3N-S70 S Series S050 Bolted Metal 1/2″ Max-Pass Solids Handling Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2″ BSPT Connections. Glass-Filled Polypropylene Air Section, 316 Stainless Steel Liquid Section & Valve Seats, Geolast Diaphragms, Buna-N Balls & O-Rings. 9 gpm (34.1 lpm) Maximum Flow, 3/8″ (9.5 mm) Max Solids. Wet End Repair Kit SWE-050-GNXN-M, Air End Kit SAK-050-P Available to order.

Air Chamber Polypropylene (Glass Filled)
Air Inlet 1/4″ FNPT
Air Supply Pressure 120 psi (8.3 bar) Maximum
Base Model Number S050
Configuration Suction/Discharge Right
Connection Type BSPT
Construction Bolted
Diaphragm Geolast
Discharge NPT (Inches) 1/2″
Material Viton
Maximum Flow (GPM) 9 gpm (34.1 lpm)

Max Suction Lift Dry: 13 ft (4.0 m); Wet: 25 ft (7.6 m)
Model Series S Series
Other Factors No Special Options
Product Notes Stainless Steel Hardware, Plastic Muffler
Pump Size 1/2″
Solids (Inches) 3/8″ (9.5 mm)
Suction NPT (Inches) 1/2″
Valve Balls Buna-N Max-Pass Valve
Valve / Seat / O-Ring 316 Stainless Steel Seat / Buna-N O-Rings
Wetted Parts 316 Stainless Steel
