ARO (Ingersoll Rand) Diaphragm Pump 6661BF-344-C

6661BF-344-C

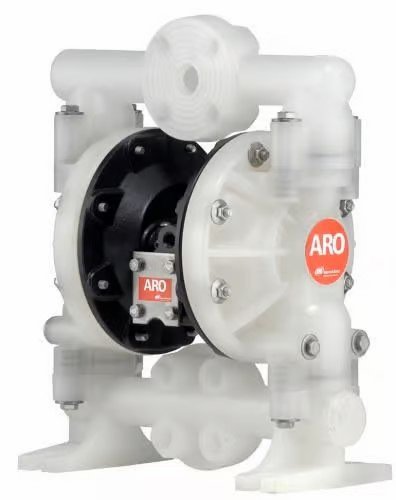

ARO 6661BF-344-C 1″ Non-Metallic Pro Series AODD Diaphragm Pump. Cast Iron Center Body, Colorless Polypropylene Fluid Caps & Manifold (1-Piece Manifold).47 GPM (177.9 LPM) Maximum Flow Rate, Polypropylene Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 1″ ANSI / DIN Flange Connection. An Ingersoll Rand Business.

Air Inlet 1/4 – 18 NPTF
CCN Number 20034351
Configuration 1-Piece Manifold
Connection Size 1″
Connection Type 1″ ANSI / DIN Flange
Diaphragm PTFE / Santoprene
Discharge Volume Per Cycle 0.17 Gal (0.64 Lit)
Inlet Pressure (PSI) 120 psig (8.3 bar)
Liquid End Configuration Colorless Polypropylene Fluid Caps & Manifold
Material Cast Iron Center Body
Maximum Flow (GPM) 47 GPM (177.9 LPM)

Maximum Working Pressure (PSIG) 120 psi (8.3 bar)
Max Suction Lift 15 Feet (4.6m)
Model Series 1” Non-Metallic Pro Series
Quick Specs PUMP, DIAPH, POLY FLANGE
Solids (Inches) 1/8″ (3.2mm)
Temperature Range 40° to 175° F (4° to 79° C)
Type Standard Pump
Valve Balls PTFE
Valve / Seat / O-Ring Polypropylene
