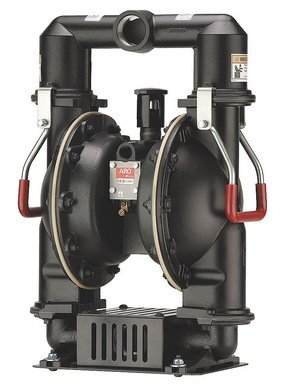

ARO (Ingersoll Rand) Diaphragm Pump 66M250-1EB-C

66M250-1EB-C
ARO 66M250-1EB-C Pit Boss 2″ Dewatering & Solids Handling Mining Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Carbon Steel Hardware. 156 GPM (590.5 LPM) Maximum Flow Rate, Aluminum Seats, Santoprene Balls & Diaphragm, 2 – 11-1/2 NPTF – 2 Connection. An Ingersoll Rand Business.

Air Inlet 3/4 – 14 NPTF – 2
CCN Number 15319643
Connection Size 2″
Connection Type 2 – 11-1/2 NPTF – 2
Diaphragm Santoprene
Discharge Volume Per Cycle 1.02 Gal (3.86 lit)
Inlet Pressure (PSI) 120 psig (8.3 bar)
Liquid End Configuration Aluminum Fluid Caps & Manifold
Material Aluminum Center Body
Maximum Flow (GPM) 156 GPM (590.5 LPM)
Maximum Working Pressure (PSIG) 120 psi (8.3 bar)

Metal Parts Carbon Steel Hardware
Model Series Pit Boss 2″ Dewatering Solids Handling
Quick Specs PUMP,DIAP,2IN,MINING
Solids (Inches) 3/4″ (19.1mm)
Temperature Range -40° to 225° F (-40° to 107° C)
Type Mining Pump
UPC 638845409452
Valve Balls Santoprene
Valve / Seat / O-Ring Aluminum
