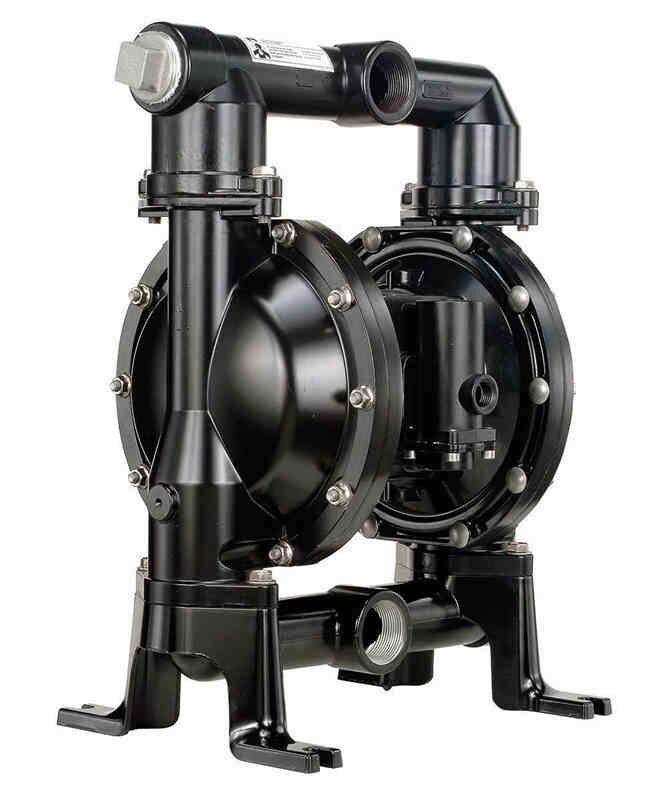

ARO (Ingersoll Rand) Diaphragm Pump 670036-151

670036-151

ARO 670036-151 1-1/2″ Metallic Expert Series AODD Diaphragm Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Plated Steel Hardware. 123 GPM (465.6 LPM) Maximum Flow Rate, 316 Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 1-1/2 – 11-1/2 NPTF – 1 Connection. An Ingersoll Rand Business.

Air Inlet 1/2 – 14 NPT
CCN Number 15230071
Connection Size 1-1/2″
Connection Type 1-1/2 – 11-1/2 NPTF – 1
Diaphragm PTFE / Santoprene
Discharge Volume Per Cycle 0.617 Gal (2.34 Lit)
Inlet Pressure (PSI) 120 psig (8.3 bar)
Liquid End Configuration Aluminum Fluid Caps & Manifold
Material Aluminum Center Body
Maximum Flow (GPM) 123 GPM (465.6 LPM)
Maximum Working Pressure (PSIG) 120 psi (8.3 bar)

Max Suction Lift 14 Feet (4.2m)
Metal Parts Plated Steel Hardware
Model Series 1-1/2” Metallic Expert Series
Product Notes Models 670036-15X have been tested in Wet Sol “plus” with no water contact allowed.
Quick Specs DIAP PUMP, 1.5IN (TEXT)
Solids (Inches) 1/4″ (6.4mm)
Temperature Range 40° to 225° F (4° to 107° C)
Type Standard Pump
Valve Balls PTFE
Valve / Seat / O-Ring 316 Stainless Steel
