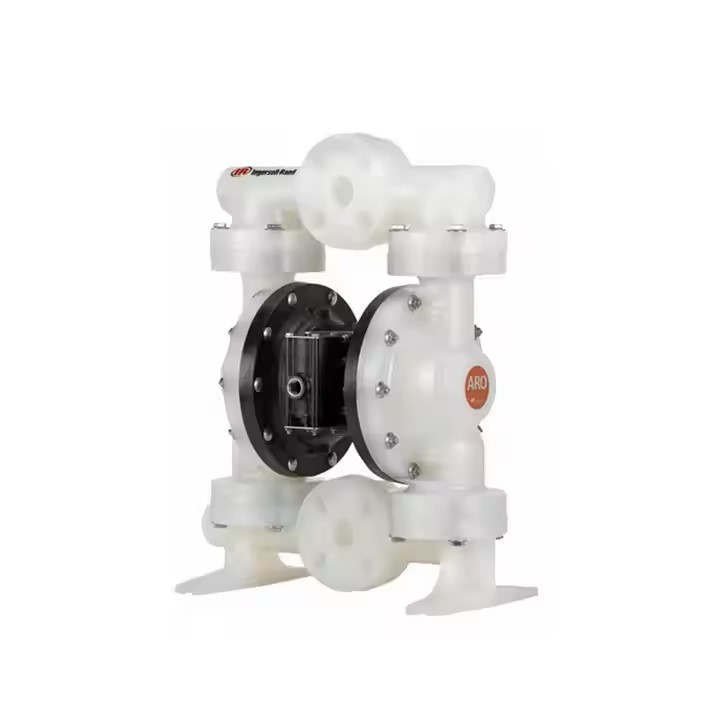

ARO (Ingersoll Rand) Diaphragm Pump PD05P-ARS-PGG-B

PD05P-ARS-PGG-B

ARO PD05P-ARS-PGG-B 1/2″ Non-Metallic Compact AODD Diaphragm Pump. Polypropylene Center Body, Polypropylene Fluid Caps & Manifold (Multiple Port), Stainless Steel Hardware. 14.4 GPM (54.5 LPM) Maximum Flow Rate, Polypropylene Seats, Nitrile Balls & Diaphragm, 1/2 – 14 NPTF – 1 Connection. An Ingersoll Rand Business.

Air Inlet 1/4 – 18 NPTF SAE Short
CCN Number 15245434
Configuration Multiple Port
Connection Size 1/2″
Connection Type 1/2 – 14 NPTF – 1
Diaphragm Nitrile
Discharge Volume Per Cycle 0.039 Gal (0.15 Lit)
Inlet Pressure (PSI) 100 psig (6.9 bar)
Liquid End Configuration Polypropylene Fluid Caps & Manifold
Material Polypropylene Center Body
Maximum Flow (GPM) 14.4 GPM (54.5 LPM)

Maximum Working Pressure (PSIG) 100 psi (6.9 bar)
Max Suction Lift 15 Feet (4.6m)
Metal Parts Stainless Steel Hardware
Model Series 1/2” Non-Metallic Compact Series
Quick Specs DIAP PUMP, 1/2 IN PD05P-ARS-PGG-B
Solids (Inches) 3/32″ (2.4mm)
Temperature Range 32° to 175° F (0° to 79° C)
Type Standard Pump
Valve Balls Nitrile
Valve / Seat / O-Ring Polypropylene
