ARO (Ingersoll Rand) Diaphragm Pump PD07R-AAS-PCC

PD07R-AAS-PCC

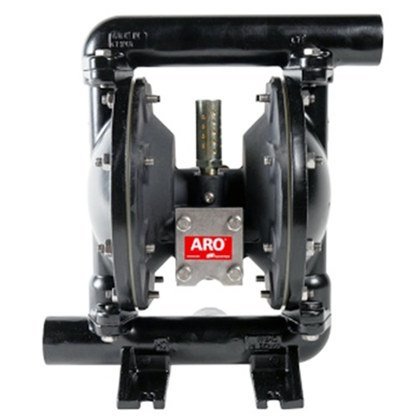

ARO PD07R-AAS-PCC 3/4″ Metallic Compact AODD Diaphragm Pump. Polypropylene Center Body, Aluminum Fluid Caps & Manifold, Stainless Steel Hardware. 13.6 GPM (51.5 LPM) Maximum Flow Rate, Polypropylene Seats, Hytrel Balls, Hytrel Diaphragm, 3/4 – 14 NPTF-2 Connection. An Ingersoll Rand Business.

Air Inlet 1/4 – 18 PTF SAE Short
CCN Number 15263346
Connection Size 3/4″
Connection Type 3/4 – 14 NPTF-2
Diaphragm Hytrel
Discharge Volume Per Cycle 0.030 Gal (0.11 Lit)
Inlet Pressure (PSI) 100 psig (6.9 bar)
Liquid End Configuration Aluminum Fluid Caps & Manifold
Material Polypropylene Center Body
Maximum Flow (GPM) 13.6 GPM (51.5 LPM)
Maximum Working Pressure (PSIG) 100 psi (6.9 bar)

Max Suction Lift 15 Feet (4.6m)
Metal Parts Stainless Steel Hardware
Model Series 3/4” Metallic Compact Series
Quick Specs DIAP PUMP, 3/4 IN, MET PD07R-AAS-PCC
Solids (Inches) 3/32″ (2.4mm)
Temperature Range 32° to 175° F (0° to 79° C)
Type Standard Pump
Valve Balls Hytrel
Valve / Seat / O-Ring Polypropylene
