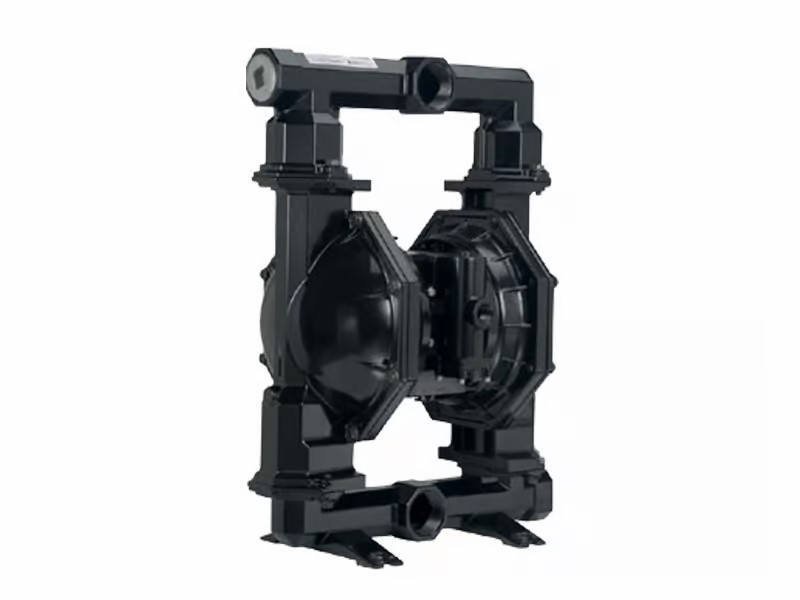

ARO (Ingersoll Rand) Diaphragm Pump PD20A-ACS-EAA-B

PD20A-ACS-EAA-B

ARO PD20A-ACS-EAA-B 2″ Metallic Expert Series AODD Diaphragm Pump. Aluminum Air Motor/Cap, Cast Iron Fluid Caps & Manifold, Stainless Steel Hardware. 172 GPM (651 LPM) Maximum Flow Rate, Carbon Steel Seats, Santoprene Balls & Diaphragm, 2 – 11-1/2 NPTF – 1 Connection. An Ingersoll Rand Business.

Air Inlet 3/4 – 14 NPTF – 1
CCN Number PD20A-ACS-EAA-B
Connection Size 2″
Connection Type 2 – 11-1/2 NPTF – 1
Diaphragm Santoprene
Discharge Volume Per Cycle 1.4 Gal (5.3 Lit)
Inlet Pressure (PSI) 120 psig (8.3 bar)
Liquid End Configuration Cast Iron Fluid Caps & Manifold
Material Aluminum Air Motor/Cap
Maximum Flow (GPM) 172 GPM (651 LPM)
Maximum Working Pressure (PSIG) 120 psi (8.3 bar)

Max Suction Lift 14 Feet (4.2m)
Metal Parts Stainless Steel Hardware
Model Series 2” Metallic Expert Series
Quick Specs 2″ PUMP ASSY
Solids (Inches) 1/4″ (6.4mm)
Temperature Range -40° to 225° F (-40° to 107° C)
Type Standard Pump
Valve Balls Santoprene
Valve / Seat / O-Ring Carbon Steel
