ARO (Ingersoll Rand) Piston Pump TP0411G21FF48S22

TP0411G21FF48S22

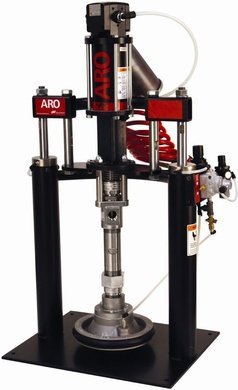

ARO TP0411G21FF48S22 TPX Series Two-Post Ram Piston Pump Package. 4-1/4″ Motor, 11:1 Ratio, Container Suitability: 5 Gallon Container (35 lbs). Hard Stainless Steel with Big Inlet, UHMW-PE Upper & Lower Packing, Multiple Wave Spring w/ 316 Stainless Steel Balls, Hardened Stainless Steel w/ Ceramic Coating Plunger. 1 – 11-1/2 NPTF – 1 (Female) & 2 – 11-1/2 P.T.F. short (Male) Inlet, 1 – 11-1/2 NPTF – 1 Outlet, 330 – 1747 psig (23 – 120 bar) Pressure Range.

Air Inlet 1/2 – 14 NPTF – 1
Build Two-Post Ram
Discharge NPT (Inches) 1 – 11-1/2 NPTF – 1
Includes Two-post ram, pump, follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI) 30 – 150 psig (2.1 – 10.3 bar)
Material Hard Stainless Steel with Big Inlet
Motor 4-1/4″
Mounting Type 5 Gallon Container (35 lbs)
Options Advanced Ram and Pump Controls
Other Factors 6″ Stroke Length

Packing Gland UHMW-PE (Upper & Lower)
Pressure Range 330 – 1747 psig (23 – 120 bar)
Product Notes Hardened Stainless Steel w/ Ceramic Coating Plunger
Quick Specs 5-GAL RAM PACKAGE, 2-POST, 4-1/4″, 11:1
Spring Multiple Wave Spring w/ 316 Stainless Steel Balls
Suction NPT (Inches) 1 – 11-1/2 NPTF – 1 (Female) & 2 – 11-1/2 P.T.F. short (Male)
Turn Down Ratio 11:1
Type Two Ball
