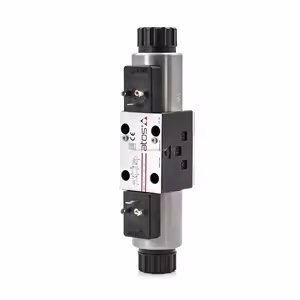

Atos Valve DHZO-AEB-NP-073-L5/I 10

MAIN CHARACTERISTICS – based on mineral cil ISO VG 46 at 50 °C
Any position
Assembly position
Subplate surface finishing
Roughness index, Ra 0,4 flatness ratio 0,01/100 (ISO 1101)
MTTFd valves according to EN ISO 13849
150 years, see technical table P007
A
standard = -20°C +70°C.
/BT option = -40°C +60°C
Ambient temperature range
AEB, AES
standard = -20°C +60°C
/BT option = -40°C + +60°C
Storage temperature range
A
standard
-20°C +80°C,
/BT option = -40°C + +70°C
AEB, AES:
standard =
-20°C÷+70°C
/BT option = -40°C + +70°C
DHZO
Coil code
DKZOR
standard
option /6
option /18
standard
option /6.
option/18
3+3,30
2 + 2,20
13 – 13,4Ω
2,2 : 2,4Ω
12 + 12,5 Ω
Coil resistance R at 20°C
3,8 – 4,1 Ω
Max, solenoid current
2.2 A
2.75 A
1 A
2.6 A.
3.25 A
1.2 A
Max. power
30W
AEB, AES =
50W
A = 35W
AEB. AES = 50W
H (180°) Due to the occuring surface temperatures of the ssolenoid coils, the European standards
Insulation class
ISO 13732-1 and EN982 must be taken into account
Protection degree to DIN EN60529
IP66/67 with mating connectors
Tropicalization
Tropical coating on electronics PCB
Duty factor
Continuous rating (ED=100%)
EMC, climate and mechanical load
See technical table G004
USE
PROFIBUS DP
CANopen
EtherCAT
Communication interface
Atos ASCII coding
EN50325-4 + DS408
EN50170-2/IEC61158
IEC 61158
not insulated
optical insulated
optical insulated
Fast Ethernet, insulated
Communication physical layer
USB 2.0 + USB OTG
CAN ISO11898
RS485
100 Base TX
