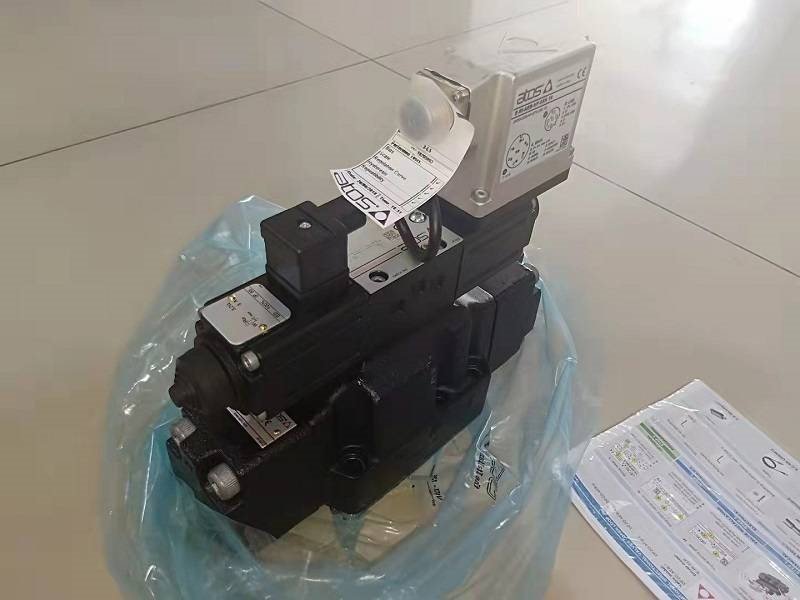

Atos Valve DPZO-A-271-S5/E/18 50 /BT

US$4,240.29

Additional information

brand	Atos
Model Number	DPZO-A-271-S5/E/18 50 /BT
weight	13kg

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

MAIN CHARACTERISTICS OF PROPORTIONAL DIRECTIONAL VALVES
Any position
Assembly position
Subplate surface finishing
Roughness index Ra 0,4 – flatness ratio 0,01/100 (ISO 11101)
-20°C + +70°C for -Lexecution; -20°C + +60°C for -LE and LESS executions
Ambient temperature
Fluid
Hydraulic oil as per DIN 51524 … 535 for other fluids see sectioon m
Recommended viscosity
15 +100 mm?/s at 40°C (ISO VG 15+100)
Fluid contamination class
ISO 4406 class 20/18/15 NAS 1638 class 9, in line filters of 10μm (B1o≥75 recommended)
Fluid temperature
-20°C +60°C (standard seals and water glycol)
-20°C +80°C (/PE seals)
Coil resistance R at 20°C
3 ÷ 3,3 Ω
2,6 A
Max, solenoid current
35 Watt
Max. power
Insulation class
H (180°) Due to the occuring surface temperatures of the solenoidcoils, the European standards
ISO 13732-1 and EN982 must be taken into account
IP65 for -L execution; IP67 for -LE and -LES executions
Protection degree (CEI EN-60529)
Duty factor
Continuous rating (ED=100%)
