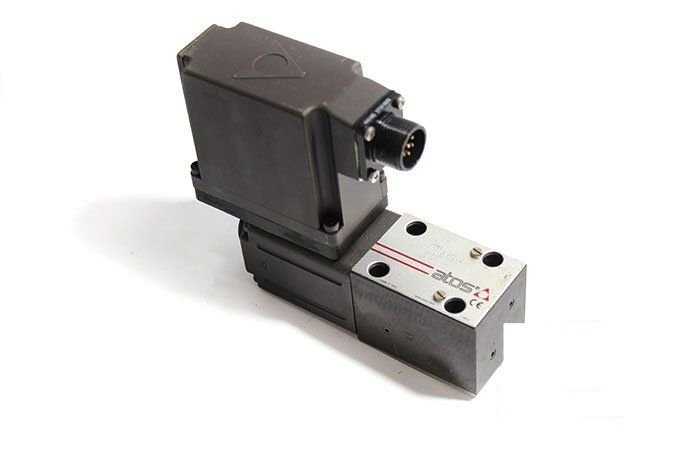

Atos Valve RZGO-RES-P-BC-010/210/Z 10

MAIN CHARACTERISTICS – based on mineral oil ISO VG 46 at 50 °C
Assembly position
Any position
Subplate surface finishing
Roughness index, Ra 0,4 flatness ratio 0,01/100 (ISO 1101)
MTTFd valves according to EN ISO 13849,
150 years, see technical table P007
R:
Ambient temperature range
standard = -20°C +70°C.
/BT option = -40°C +60°C
REB, RES
standard = -20°C +60°C.
/BT option = -40°C +60°C
Storage temperature range
R
standard = -20°C +80°C,
/BT option = -40°C + +70°C
REB, RES:
standard = -20°C + +70°C,
/BT option = -40°C ÷ +70°C
3+3,30
Coil resistance R at 20°C
Max. solenoid current
2.4 A
Max. power
R = 30 Watt
REB, RES = 50 Watt
Pressure transducer
E-ATR-8/*/I
output signal = 4+ 20 mA – see tech table GS465
Insulation class
H (180°) Due to the occuring surface temperatures of the soplenoid coils, the European standards
ISO 13732-1 and EN982 must be taken into account
Protection degree to DIN EN60529
IP66/67 with mating connectors
Tropicalization (only REB, RES)
Tropical coating on electronics PCB
Duty factor
Continuous rating (ED=100%)
EMC, climate and mechanical load
See technical table G004
USB
PROFIBUS DP
CANopen
EtherCAT
Communication interface (only REB, RES)
Atos ASCII coding
EN50325-4 + DS408
EN50170-2/IEC61158
EC 61158
not insulated
Communication physical layer
optical insulated
optical insulated
Fast Ethernet, insulated
USB 2.0 + USB OTG
(only REB, RES)
CAN ISO11898
RS485
100 Base TX
