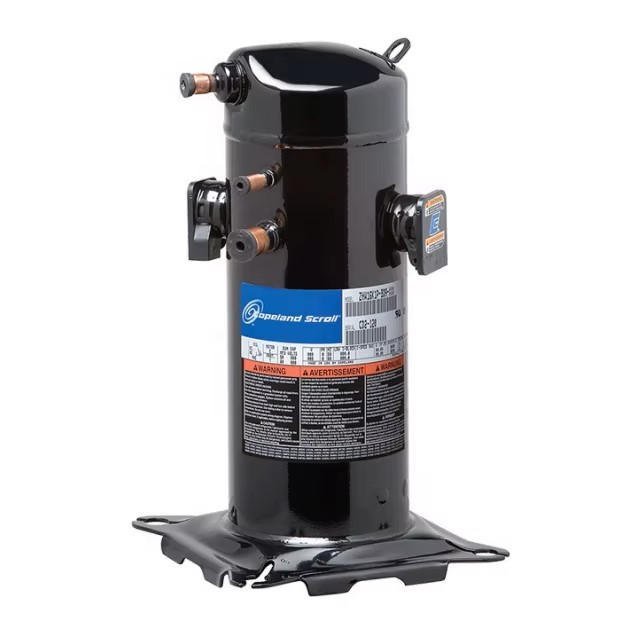

Copeland Refrigeration compressor ZB76K5E-TFD

Additional information

brand	Copeland Refrigeration compressor
Model Number	ZB76K5E-TFD
Refrigerant	R134a, R404A, R407A, R407C, R407F, R448A, R449A

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

Data
Technical data
Displacement
[m³/h]
28.8

Oil charge
[l]
3.37

Oil type
POE RL32-3MAF

Internal free volume
[dm³]
13.3

Net weight
[kg]
61.2
Electrical data and limits
Power supply
400V/3Ph/50Hz

Maximum continuous current
MCC, motor protection current.
[A]
20.4

Locked rotor amperage
LRA
[A]
118.0

Motor resistance main
[Ω]
1.23

Maximum suction pressure
[bar]
22.6

Maximum discharge pressure
[bar]
32.0
Dimensions
Suction connection thread diameter
[inch]
1 3/4

Discharge connection thread diameter
[inch]
1 1/4

Length
[mm]
280

Height
[mm]
534

Width
[mm]
280
Other
Approved refrigerants
R134a, R404A, R407A, R407C, R407F, R448A, R449A

Allowed oil types
POE RL32-3MAF, POE MOBIL EAL Arctic 22 CC

Capacity control
None

Protection rating
IP54 (IEC34)
