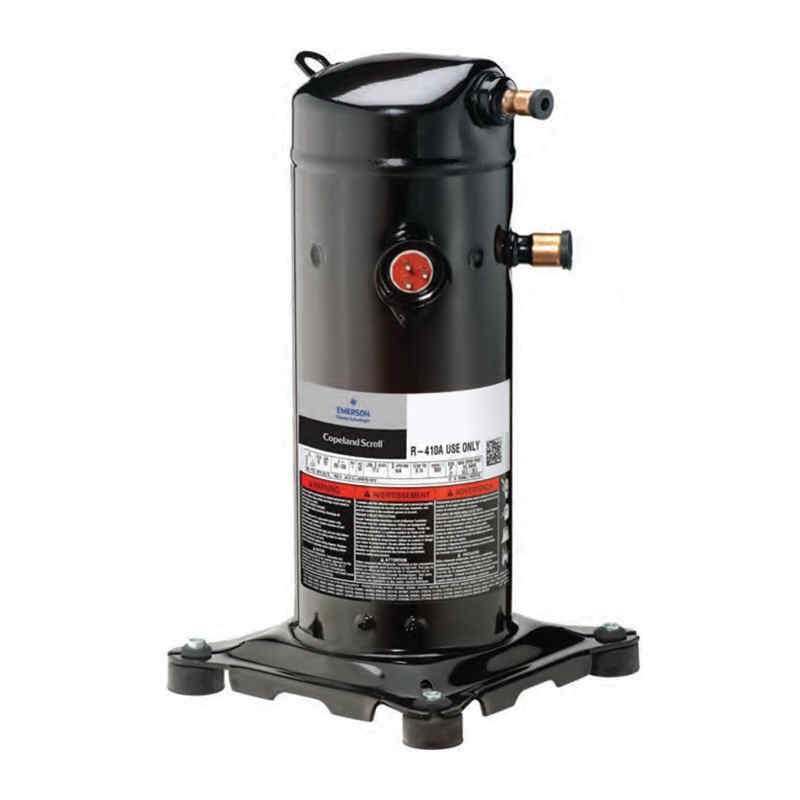

Copeland Refrigeration compressor ZP32K3E-PFJ

Additional information

brand	Copeland Refrigeration compressor
Model Number	ZP32K3E-PFJ
Power supply	230V/1Ph/50Hz
Refrigerant	R410A

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

data
Technical data Displacement[m³/h] : 5.34

Oil charge[l] : 1.24

Oil type
POE RL32-3MAF

Internal free volume[dm³] : 2.5

Net weight[kg] : 28.1
Electrical data and limits
Power supply
230V/1Ph/50Hz

Maximum continuous current
MCC, motor protection current.
[A] : 19.0

Locked rotor amperage
LRA
[A] : 82.0

Motor resistance main[Ω] : 0.90

Motor resistance start[Ω] : 1.80

Maximum suction pressure[bar] : 28.0

Maximum discharge pressure[bar] : 45.0

Maximum suction temperature[°C] : 50.0
DimensionsSuction tube diameter[inch] : 3/4

Discharge tube diameter[inch] : 1/2

Length[mm] : 246

Height[mm] : 384

Width[mm] : 246
Other Approved refrigerants R410A

Allowed oil types POE RL32-3MAF

Capacity control None
