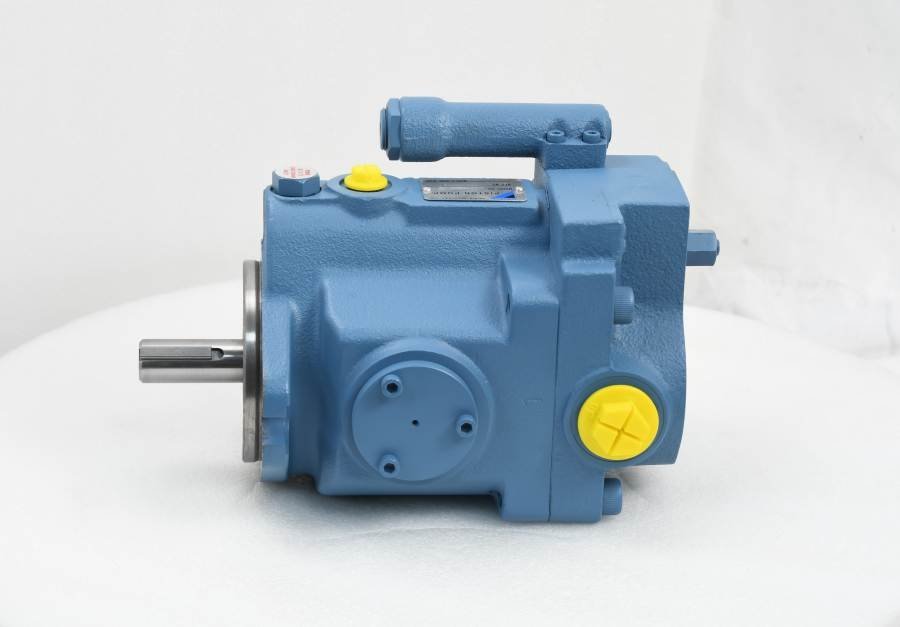

Daikin Piston Pump V38C13RJAX-95

Technical specifications of the V38C13RJAX-95:
Type Pump
Model 38
Pump performance (power) 37.7 cm3/rev
Management method C-Combined pressure and performance control (solenoid method)
Pressure adjustment range
Low pressure adjustment range 1.5 to 7 (15 to 70) MPa (kgf/cm2)
High pressure adjustment range 3.5 to 21 (35 to 210) MPa (kgf/cm2)
Pressure drop across valves (for SA method)
Direction of shaft rotation when viewed from the end of the shaft Clockwise (to the right)
Control method II (for C) Solenoid method
Voltages for the electromagnetic valve (solenoid) AC 100 V (50/60 Hz), AC 110 V (60 Hz)
Design number 95
Control method III Without remote control system
Hydraulic fluid type: Petroleum hydraulic fluid Petroleum hydraulic fluid
