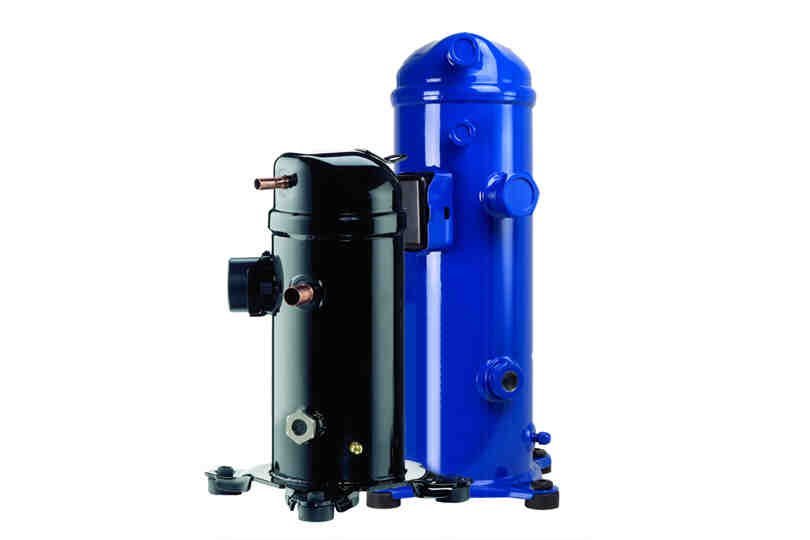

Danfoss Compressor DSH485C3APC

Product details
Gross weight
193.5 Kilogram
Net weight
184 Kilogram
Volume
590.63 Liter
EAN
5702424598624
Gross weight
193.5 Kilogram
Net weight
184 Kilogram
Volume
590.63 Liter
EAN
5702424598624

Approval
CEULUKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
208-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
DSH485-3
Diameter [mm]
333 mm
Discharge connection height [mm]
667 mm
Discharge connection pipe size [in]
1 3/8 in
Discharge connection size [in]
1 3/8 in
Drawing number
8556237
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I6(a)6(a)-I6(c)7(a)8(b)
Family
DSH
Fitting sleeve
ODF
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
3.9 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
In scope of WEEE
No
IP protection class
IP54 (with cable gland)
Length [mm]
371 mm
Liquid injection
No
Low Side TS Max
52 °C
Low Side TS Min
-35 °C
Low Side Volume
27.5 L
Low value of nominal voltage at 60Hz [V]
208 V
Low value of voltage range at 60Hz [V]
187 V
LRA
761 A
Max pressure (PS) – high side
48.7 bar
Max pressure (PS) – low side
31.2 bar
Maximum Operating Current [MOC]
185 A
MCC
203 A
Model number
DSH485C3APC
Motor protection
Electronic protection module, 110/240 V
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.1 L
Oil drain
1/4” flare
Oil equalization
2-1/4” Rotolock
Oil reference
160SZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product name
DSH
Refrigerant charge [kg] [Max]
17 kg
Refrigerants
R410AR452BR454B
Reverse rotation protection
Electronic module
RLA
143 A
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Air conditioning
Suction connection height [mm]
302 mm
Suction connection material
–
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
442.6 cm³
Technology
Scroll
Test Dif [bar] [Max]
37 bar
Test HP [bar] [Max]
53.6 bar
Test LP [bar] [Max]
34.3 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
726 mm
Type
DSH485
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UL evaluated
Yes
Viscosity [cP]
32 cP
Width [mm]
371 mm
Winding resistance for three-phase compressors with identical windings [Ohm]
0.10 Ohm
