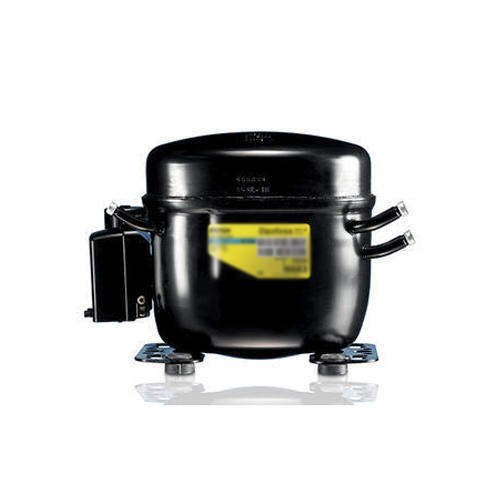

Danfoss Compressor MLY90RAb

Product details
Gross weight
11.6 Kilogram
Net weight
11.3 Kilogram
Volume
12 Liter
EAN
5702424666729
Gross weight
11.6 Kilogram
Net weight
11.3 Kilogram
Volume
12 Liter
EAN
5702424666729

Applications
HBPMBP
Approval
VDE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
10.5
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Colour
Black
Compressor power supply [V]
220/1/50
Configuration code
Single
Contain batteries
No
Cut in current HST 50Hz [A]
17 A
Description
MLY90RAb
Discharge connection angle [°]
0 °
Discharge connection comments
Rubber plug
Discharge connection diameter [mm]
4.9 mm
Discharge connection height [mm]
121 mm
Discharge connection material
Cu-plated steel
Economizer
No
Family
L
Frequency [Hz]
50
Height from baseplate [mm]
198 mm
High value of nominal voltage at 50Hz [V]
240 V
High value of voltage range at 50Hz [V]
264 V
In scope of WEEE
No
Low value of nominal voltage at 50Hz [V]
220 V
Low value of voltage range at 50Hz [V]
187 V
LRA HST 50Hz [A]
17 A
Main winding resistance for single-phase compressors [Ohm]
4.68
MCC
5.30 A
Model number
MLY90RAb
Motor type
CSR
No. of phases (compressor)
1
Oil quantity [cm3]
400 cm³
Oil type
POE
Packing format
Industrial pack
Packing quantity
120
Process connection angle [°]
50 °
Process connection comments
Rubber plug
Process connection diameter [mm]
6.5 mm
Process connection material
Cu-plated steel
Product group
Hermetic compressors
Product name
Reciprocating compressor L
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
1.15 kg
Refrigerants
R404AR448AR449AR452A
Rotational speed at 50Hz [rpm]
3000 rpm
Run capacitor capacitance
10 µF
Segment usage
Refrigeration MT
Start capacitor capacitance
60-61 µF
Suction connection angle [°]
20 °
Suction connection diameter [mm]
6.5 mm
Suction connection height [mm]
125 mm
Suction connection material
Cu-plated steel
Swept volume [cm3]
9.09 cm³
Technology
Reciprocating
Total height [mm]
205 mm
Type
MLY90
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Voltage 50Hz [V]
220 V
Voltage 50Hz [V] [Max]
240 V
Winding temperature short term [°F] [Max]
135 °C
Winding temperature stat [°C] [Max]
115 °C
