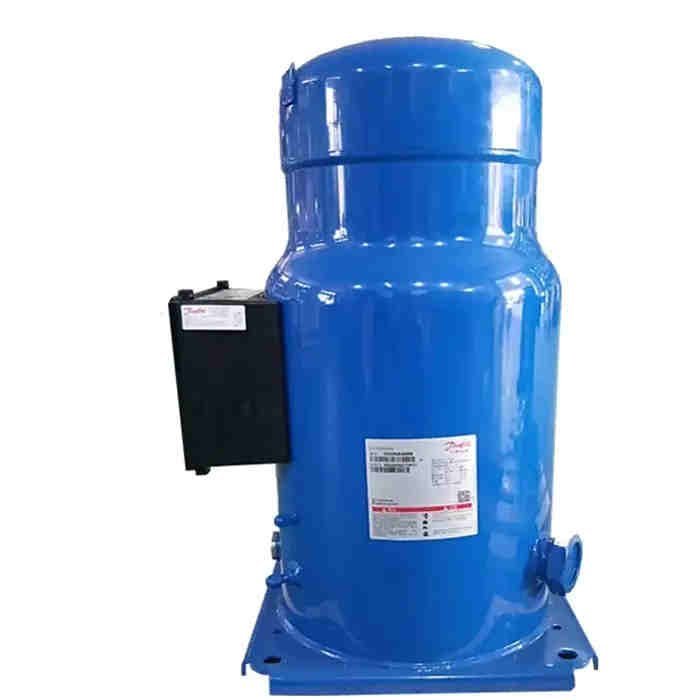

Danfoss Compressor MTZ36JG1AVE

Product details
Gross weight
27.88 Kilogram
Net weight
26 Kilogram
Volume
37.73 Liter
EAN
5702428888189
Gross weight
27.88 Kilogram
Net weight
26 Kilogram
Volume
37.73 Liter
EAN
5702428888189

Approval
CEULUKCA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
2.9
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Capacity of capacitor A
25 µF
Capacity of capacitor B
100 µF
Capacity of capacitor C
20 µF
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
208-230/1/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
1
Description
MTZ036-1
Diameter [mm]
224 mm
Discharge connection height [mm]
68 mm
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1 in
Drawing number
8501020e
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)6(c)
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Family
MTZ
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
0.3 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
In scope of WEEE
No
IP protection class
IP55 (with cable gland)
Low Side TS Max
50 °C
Low Side TS Min
-35 °C
Low Side Volume
7.5 L
Low value of nominal voltage at 60Hz [V]
208 V
Low value of voltage range at 60Hz [V]
187 V
LRA
84 A
Main winding resistance for single-phase compressors [Ohm]
0.63
Max pressure (PS) – high side
29.4 bar
Max pressure (PS) – low side
22.6 bar
MCC
30 A
Model number
MTZ36JG1AVE
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
208-230/1/60
Number of starts per hour [Max]
12
Oil charge [L]
0.95 L
Oil equalization
3/8” flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
175PZ
Packaging height [mm]
385 mm
Packaging length [mm]
330 mm
Packaging weight [Kg]
27 kg
Packaging width [mm]
295 mm
Packing format
Single pack
Packing quantity
1
Phase
1
Power connections
Spade
Product group
Hermetic compressors
Product name
MTZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
2.5 kg
Refrigerants
R134aR404AR407AR407CR407FR448AR449AR452AR513AR454AR454CR455A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usage
Refrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts, and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
263 mm
Suction connection material
–
Suction connection pipe size [in]
5/8 in
Suction connection size [in]
1 1/4 in
Swept volume [cm3]
60.47 cm³
Technology
Reciprocating
Test Dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 N-m
Torque power [Nm]
3 N-m
Total height [mm]
356 mm
Type
MTZ036
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UL evaluated
Yes
Voltage of capacitor A [V]
440 V
Voltage of capacitor B [V]
330 V
Voltage of capacitor C [V]
440 V
Approval
