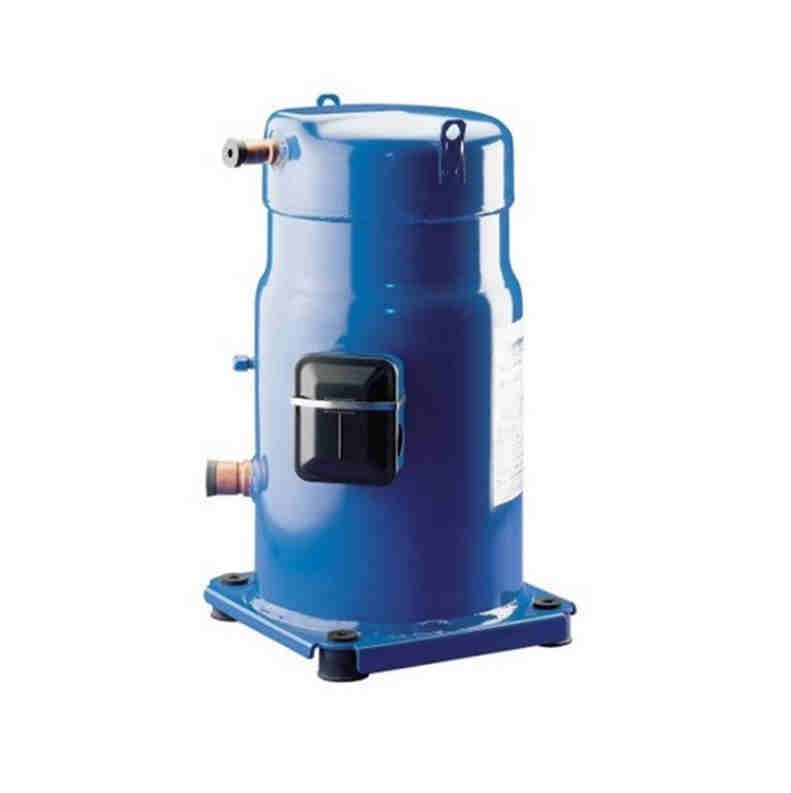

Danfoss Compressor NTZ215A4LR1B

Product details
Gross weight
68.25 Kilogram
Net weight
63.67 Kilogram
Volume
100.75 Liter
EAN
5702428521123
Gross weight
68.25 Kilogram
Net weight
63.67 Kilogram
Volume
100.75 Liter
EAN
5702428521123

Approval
CEUKCA
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
400/3/50 460/3/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
4
Description
NTZ215-4B
Diameter [mm]
352 mm
Discharge connection height [mm]
125 mm
Discharge connection pipe size [in]
3/4 in
Discharge connection size [in]
1 1/4 in
Drawing number
8504010f
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)6(c)
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Family
NTZ
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
1.2 L
High value of nominal voltage at 50Hz [V]
400 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
460 V
High value of voltage range at 60Hz [V]
506 V
In scope of WEEE
No
IP protection class
IP54 (with cable gland)
Low Side TS Max
50 °C
Low Side TS Min
-35 °C
Low Side Volume
31 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
340 V
Low value of voltage range at 60Hz [V]
414 V
LRA
74 A
Max pressure (PS) – high side
28.5 bar
Max pressure (PS) – low side
22.6 bar
MCC
22.3 A
Model number
NTZ215A4LR1B
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3.9 L
Oil equalization
3/8” flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
175PZ
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product name
NTZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
10 kg
Refrigerants
R404AR452A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
6971587b-85b6-4808-886d-274e8a9998d4
Segment usage
Refrigeration LT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts, and gaskets
Suction connection height [mm]
233 mm
Suction connection material
–
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 3/4 in
Swept volume [cm3]
215 cm³
Technology
Reciprocating
Test Dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 N-m
Torque power [Nm]
3 N-m
Total height [mm]
519 mm
Type
NTZ215
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
Winding resistance for three-phase compressors with identical windings [Ohm]
2.23 Ohm
Approval
CEUKCA
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
400/3/50 460/3/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
4
Description
NTZ215-4B
Diameter [mm]
352 mm
Discharge connection height [mm]
125 mm
Discharge connection pipe size [in]
3/4 in
Discharge connection size [in]
1 1/4 in
Drawing number
8504010f
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)6(c)
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Family
NTZ
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
1.2 L
High value of nominal voltage at 50Hz [V]
400 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
460 V
High value of voltage range at 60Hz [V]
506 V
In scope of WEEE
No
IP protection class
IP54 (with cable gland)
Low Side TS Max
50 °C
Low Side TS Min
-35 °C
Low Side Volume
31 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
340 V
Low value of voltage range at 60Hz [V]
414 V
LRA
74 A
Max pressure (PS) – high side
28.5 bar
Max pressure (PS) – low side
22.6 bar
MCC
22.3 A
Model number
NTZ215A4LR1B
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3.9 L
Oil equalization
3/8” flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
175PZ
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product name
NTZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
10 kg
Refrigerants
R404AR452A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
6971587b-85b6-4808-886d-274e8a9998d4
Segment usage
Refrigeration LT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts, and gaskets
Suction connection height [mm]
233 mm
Suction connection material
–
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 3/4 in
Swept volume [cm3]
215 cm³
Technology
Reciprocating
Test Dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 N-m
Torque power [Nm]
3 N-m
Total height [mm]
519 mm
Type
NTZ215
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
Winding resistance for three-phase compressors with identical windings [Ohm]
2.23 Ohm

Proposition 65
WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov
Proposition 65
WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov
