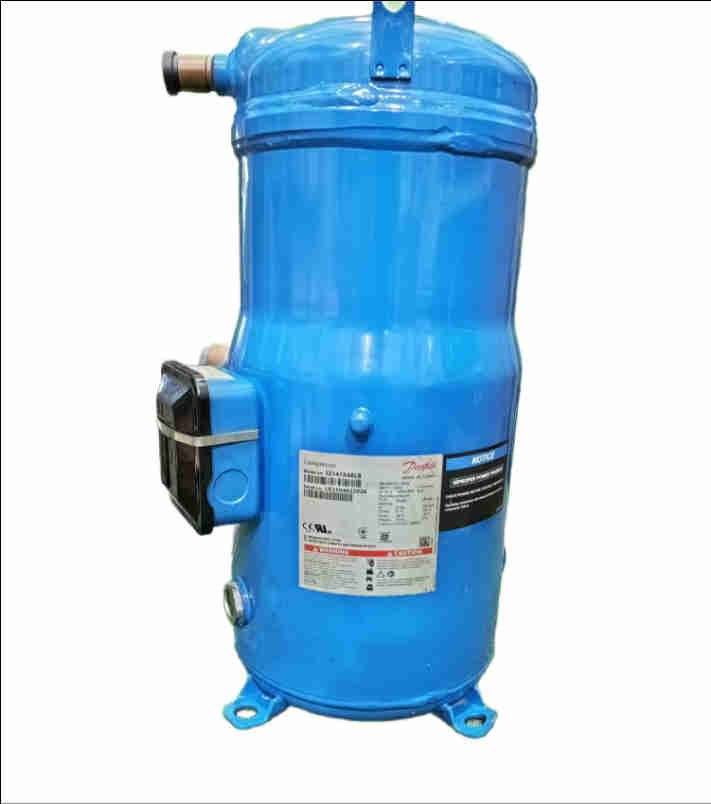

Danfoss Compressor PSH019A3CLD

Product details
Gross weight
73 Kilogram
Net weight
68.5 Kilogram
Volume
0.23 Cubic meter
EAN
5702424543167
Gross weight
73 Kilogram
Net weight
68.5 Kilogram
Volume
0.23 Cubic meter
EAN
5702424543167

Approval
CEULUKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
PSH019-3
Diameter [mm]
245 mm
Discharge connection height [mm]
524 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
7/8 in
Drawing number
8560052a
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I6(a)6(a)-I6(c)7(a)8(b)
Factory HP [bar]
0 bar
Factory LP [bar]
0 bar
Family
PSH
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
0.7 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
In scope of WEEE
No
IP protection class
IP54 (with cable gland)
Low Side TS Max
55 °C
Low Side TS Min
-35 °C
Low Side Volume
11.7 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
203 A
Max pressure (PS) – high side
48.7 bar
Max pressure (PS) – low side
33.3 bar
Maximum Operating Current [MOC]
43 A
MCC
43 A
Model number
PSH019A3CLD
Motor protection
Internal overload protector
Mounting torque [Nm]
0 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3 L
Oil equalization
1-3/4” Rotolock
Oil reference
160SZ
Oil type
POE
Packaging height [mm]
596 mm
Packaging length [mm]
470 mm
Packaging weight [Kg]
60 kg
Packaging width [mm]
370 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8mm
Product group
Hermetic compressors
Product name
PSH
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
5.9 kg
Refrigerants
R410A
RLA
30.7 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
d34ab22c-47b3-49c1-9951-6c68f577996f
SCIP dossier product name
PSH019-039
Segment usage
Heating
Shipped instructions
Installation instructions
Shipped module
discharge temperature sensorliquid injection valveOperating control system (OCS) mounted in terminal boxsurface sump heater
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
299 mm
Suction connection material
–
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 1/8 in
Swept volume [cm3]
88.4 cm³
Technology
Scroll
Test Dif [bar] [Max]
37 bar
Test HP [bar] [Max]
48.7 bar
Test LP [bar] [Max]
33.3 bar
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
558 mm
Type
PSH019
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.39 Ohm
