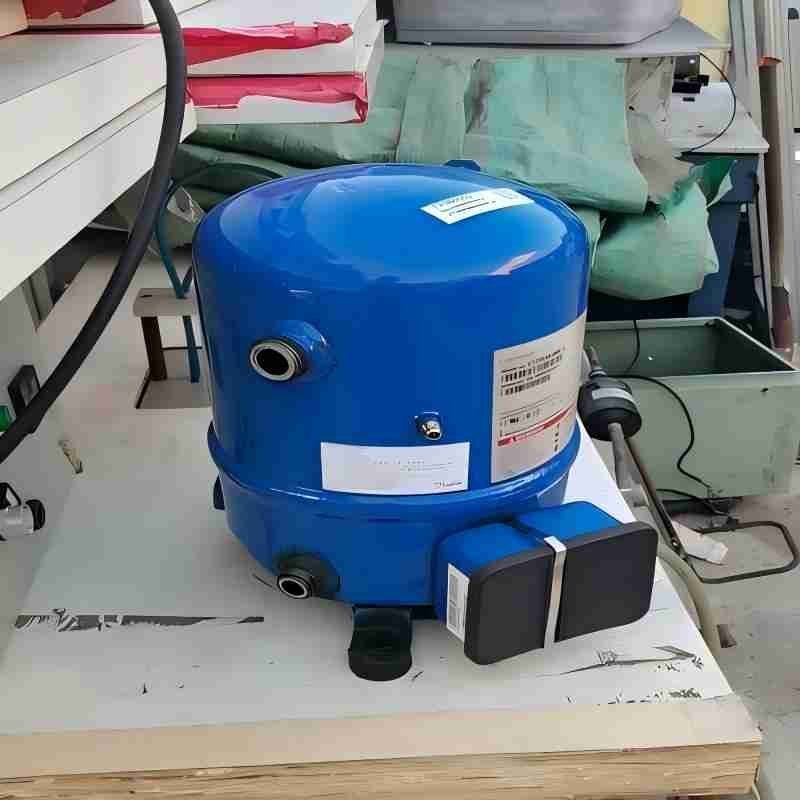

Danfoss Compressor SZ185S4QD

Product details
Gross weight
106.52 Kilogram
Net weight
100 Kilogram
Volume
0.1 Cubic meter
EAN
5702428988742
Gross weight
106.52 Kilogram
Net weight
100 Kilogram
Volume
0.1 Cubic meter
EAN
5702428988742

Approval
CEULUKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-400/3/50 460/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SZ185-4Q
Diameter [mm]
317 mm
Discharge connection height [mm]
643 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8551191a
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I6(a)6(a)-I6(c)7(a)8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SZ
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
2.5 L
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
457 V
High value of voltage range at 60Hz [V]
506 V
In scope of WEEE
No
IP protection class
IP54 (with cable gland)
Low Side TS Max
54 °C
Low Side TS Min
-35 °C
Low Side Volume
31.2 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
155 A
Max pressure (PS) – high side
34.3 bar
Max pressure (PS) – low side
25 bar
Maximum Operating Current [MOC]
35 A
MCC
34 A
Model number
SZ185S4QD
Motor protection
Electronic protection module, 24 V ac
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.2 L
Oil drain
1/4” flare
Oil drain torque [Nm]
35 N-m
Oil equalization
3/8” flare SAE
Oil equalization torque [Nm]
48 N-m
Oil reference
160SZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8mm
Product group
Hermetic compressors
Product name
SZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
13.5 kg
Refrigerants
R134aR404AR407CR507A
RLA
24 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
58968d52-aa4c-4c0c-9aee-1ce6a31dfbd1
SCIP dossier product name
SM115/SM125/SM160/SM175/SM185/SZ115/SZ125/SZ160/SZ175/SZ185/SY185
Segment usage
Air conditioning
Suction connection height [mm]
180 mm
Suction connection material
–
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
249.9 cm³
Technology
Scroll
Test Dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
678 mm
Type
SZ185
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.94 Ohm
Approval
CEULUKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-400/3/50 460/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SZ185-4Q
Diameter [mm]
317 mm
Discharge connection height [mm]
643 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8551191a
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I6(a)6(a)-I6(c)7(a)8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SZ
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
2.5 L
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
457 V
High value of voltage range at 60Hz [V]
506 V
In scope of WEEE
No
IP protection class
IP54 (with cable gland)
Low Side TS Max
54 °C
Low Side TS Min
-35 °C
Low Side Volume
31.2 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
155 A
Max pressure (PS) – high side
34.3 bar
Max pressure (PS) – low side
25 bar
Maximum Operating Current [MOC]
35 A
MCC
34 A
Model number
SZ185S4QD
Motor protection
Electronic protection module, 24 V ac
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.2 L
Oil drain
1/4” flare
Oil drain torque [Nm]
35 N-m
Oil equalization
3/8” flare SAE
Oil equalization torque [Nm]
48 N-m
Oil reference
160SZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8mm
Product group
Hermetic compressors
Product name
SZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
13.5 kg
Refrigerants
R134aR404AR407CR507A
RLA
24 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
58968d52-aa4c-4c0c-9aee-1ce6a31dfbd1
SCIP dossier product name
SM115/SM125/SM160/SM175/SM185/SZ115/SZ125/SZ160/SZ175/SZ185/SY185
Segment usage
Air conditioning
Suction connection height [mm]
180 mm
Suction connection material
–
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
249.9 cm³
Technology
Scroll
Test Dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
678 mm
Type
SZ185
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.94 Ohm
