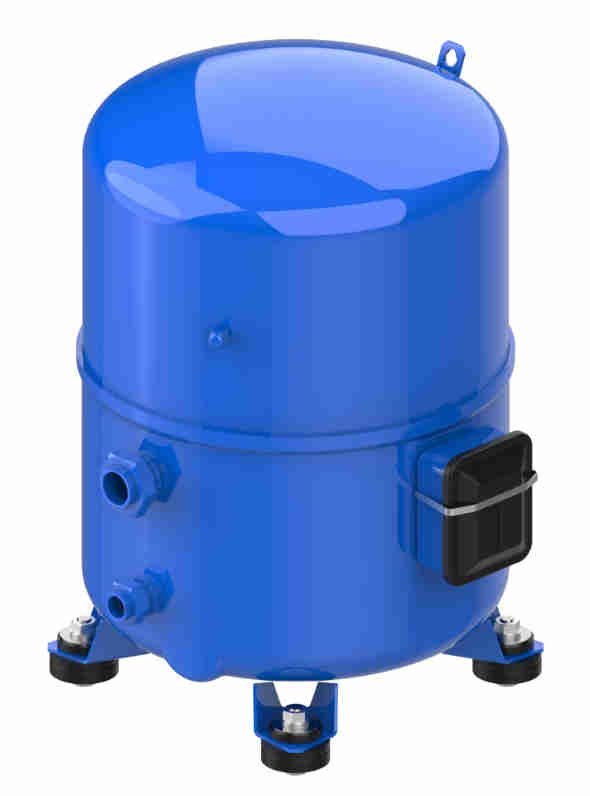

Danfoss Compressor SZ240A4PBF

Product details
Gross weight
158.75 Kilogram
Net weight
150 Kilogram
Volume
0.921 Cubic meter
EAN
5715162850619
Gross weight
158.75 Kilogram
Net weight
150 Kilogram
Volume
0.921 Cubic meter
EAN
5715162850619

Approval
CEULUKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
Compressor power supply [V]
380-400/3/50 460/3/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Description
SZ240-4
Diameter [mm]
344 mm
Discharge connection height [mm]
654 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 3/4 in
Drawing number
8556098b
Economizer
No
Family
SZ
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
5 L
High value of nominal voltage at 50Hz [V]
400 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
440 V
High value of voltage range at 60Hz [V]
506 V
In scope of WEEE
No
IP protection class
IP54 (with cable gland)
Low Side TS Max
52 °C
Low Side TS Min
-35 °C
Low Side Volume
34.1 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
215 A
Max pressure (PS) – high side
31.8 bar
Max pressure (PS) – low side
20 bar
Maximum Operating Current [MOC]
47 A
Model number
SZ240A4PBF
Motor protection
Electronic protection module, 110/240 V
Mounting torque [Nm]
40 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
8 L
Oil drain
1/4” flare
Oil drain torque [Nm]
35 N-m
Oil equalization
1/2” flare
Oil equalization torque [Nm]
66 N-m
Oil reference
160SZ
Packing format
Industrial pack
Packing quantity
4
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product name
SZ
Refrigerant charge [kg] [Max]
16 kg
Refrigerants
R134aR407CR513A
RLA
35.7 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Air conditioningHeating
Suction connection height [mm]
196 mm
Suction connection material
–
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
2 1/4 in
Swept volume [cm3]
347.8 cm³
Technology
Scroll
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
727 mm
Type
SZ240
U.S. EPA label
