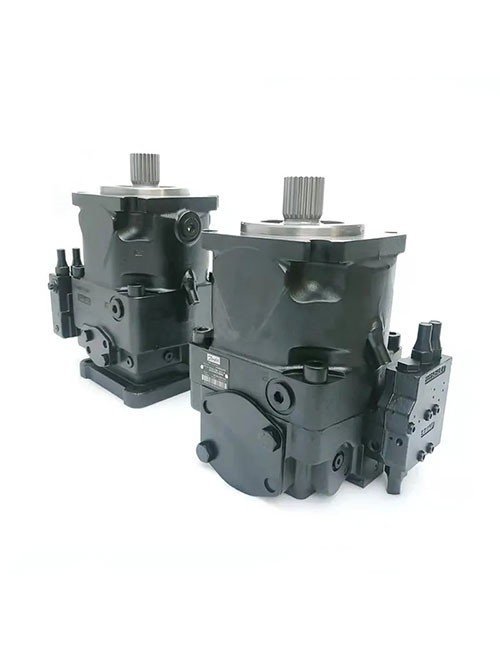

Danfoss D1P open-circuit high-power axial piston pumps D1P-260-R-A-TPSN-T-E4-Y3-E3-080-200-20-NN-FS-FS-NNN-NNN (spare parts avialable)

Specification

• D1P Product: D1P – D1P variable axial piston pump
• Displacement: 260 – 260cc/rev max/variable displacement
• Rotation: R – Right hand – clockwise
• Product version: A – Product version A
• Control type: TPSN – Power control + pressure compensated control + load sensing control
• Input shaft: T – Spline Shaft DIN5480, D1P065 W30x2x30x14x9g, D1P130~193 W50x2x30x24x9g,D1P260&290 W60x2x3x28x9g
• Front mounting flange: E4 – SAE J744 165-4 (E)
• Endcap: Y3 – Radial side flange ports inlet: SAE J518, 4 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 with impeller
• Auxiliary flange: E3 – SAE J744 165-4 (E), spline coupling: N60x2x30x28x9H
• Power control setting: 080 – 80 kW power control setting @ 1500 rpm
• Pressure compensator setting: 200 – 200 bar pressure compensated control setting
• Load sense setting: 20 – 20 bar load sensing control setting
• Hydraulic displacement control start pressure setting: NN – No hydraulic displacement control
• Maximum displacement setting: FS – 100% of maximum displacement
• Minimum displacement setting: FS – 0% of displacement
• Special hardware: NNN – No special hardware
• Special feature: NNN – Black paint, Danfoss tag, format A, without control oil filter
• Proposition 65: – Cancer and Reproductive Harm
