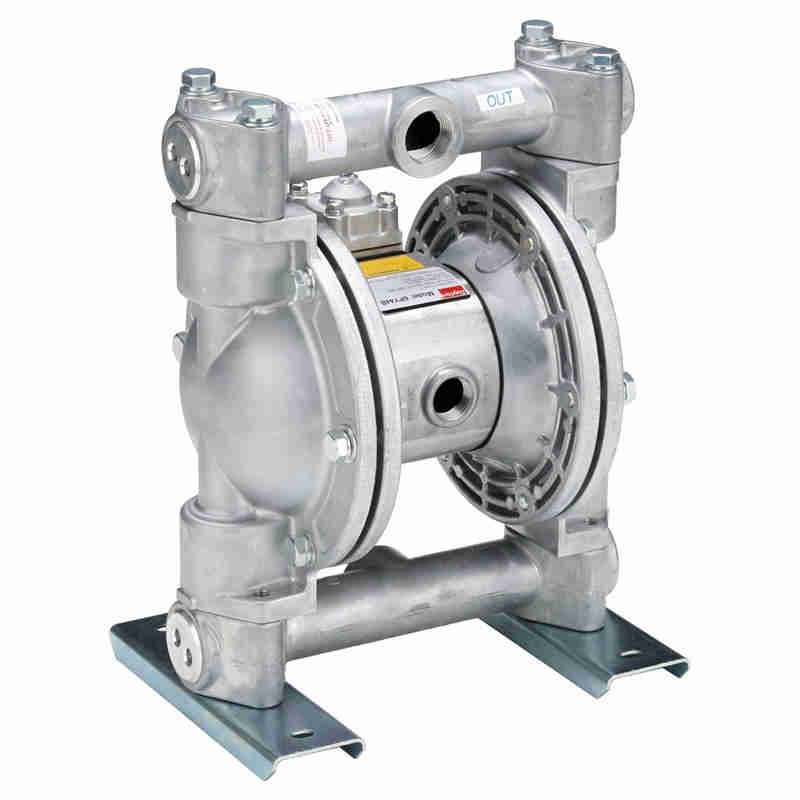

Dayton Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 21 GPM 6PY52

Dimensions
Inlet/Outlet Size 3/4 in
Air Inlet Size 1/4 in FNPT
Length 9 51/64 in
Width 12 13/32 in
Manufacturers Warranty Length 1 yr
Max. Dia. Solids 1/16 in
Height 12 9/16 in
Overall Width 12.4 in
Overall Height 12.6 in
Overall Length 9.8 in
Solid Diameter (Maximum) 0.06 in
Media Intake Connection Size 3/4 in
Media Discharge Connection Size 3/4 in
Air Intake Connection Size 1/4 in
Details
Item Double Diaphragm Pump
Diaphragm Material PTFE
Housing Material – Pumps Aluminum
Flow Rate (Maximum) 21 gpm
Diaphragm Material – Pumps PTFE
Max. Flow 21 gpm
Valve Type Ball
Item – Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp – Pumps 212 Degrees F
Connection Style NPT
Manifold Connection Single Port
Operation Type Air Operated
Max. Temp. 212 Degrees F
Self-Priming Wet 28 ft
Max. Flow GPM 21 gpm
Self-Priming Dry 15 ft
Ball Material PTFE
Check Seat Material 316 Stainless Steel
Body Material Aluminum
Max. Operating Pressure 100 psi
Flow Rate @ 40 psi 16 gpm
Air Intake Pressure (Maximum) 100 psi
Air Intake Connection Type FNPT
Media Intake Location Bottom
Mounting Hardware Material Stainless Steel, Steel
Pump Assembly Type Bolt
Media Discharge Location Top
Priming Self-Priming
Air Consumption (Maximum) 45 scfm
Media Temperature (Minimum) 40 Degrees F
Media Intake Connection Type FNPT
Operating Pressure (Maximum) 100 psi
For Use With Potable Systems No
Flow Rate @ 20 psi 12 gpm
Media Temperature (Maximum) 212 Degrees F
Flow Rate @ 60 psi 19 gpm
Manifold Connection Type NPT
Flow Rate @ 80 psi 20 gpm
Flow Rate @ 100 psi 21 gpm
Viscosity (Maximum) 40,000 cps
Duty Cycle Continuous
Wetted Housing Material Aluminum
Media Discharge Connection Type NPT
Valve Material PTFE
Non-Wetted Housing Material Aluminum
