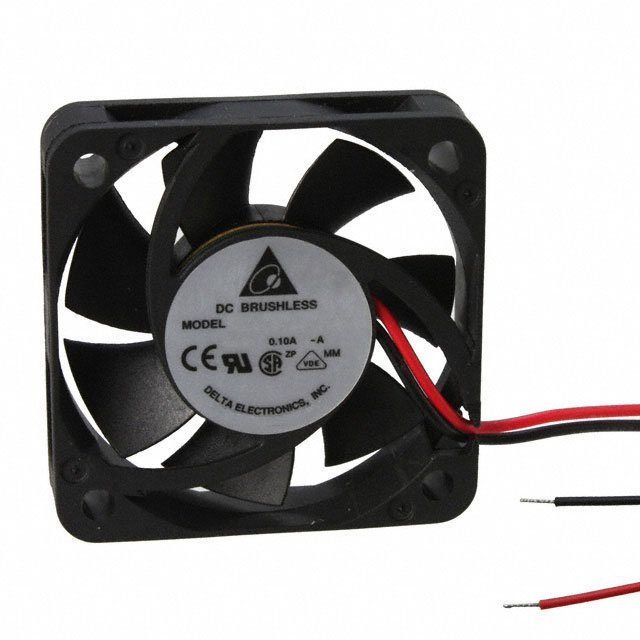

Delta DC Fans AFB0424VHB

US$18.41

Additional information

brand	Delta
Model Number	AFB0424VHB
weight	0.057 lb (25.85 g)
Description	FAN AXIAL 40X15MM 24VDC WIRE
Data	Fan Tubeaxial 24VDC Square – 40mm L x 40mm H Ball 13.0 CFM (0.364m³/min) 2 Wire Leads

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION
SELECT ALL
Category
Fans, Blowers, Thermal Management
Fans
DC Brushless Fans (BLDC)

Mfr
Delta Electronics

Series
AFB

Packaging
Box

Part Status
Active

Voltage – Rated
24VDC

Size / Dimension
Square – 40mm L x 40mm H

Width
15.00mm

Air Flow
13.0 CFM (0.364m³/min)

Static Pressure
0.459 in H2O (114.3 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
Locked Rotor Protection

Noise
36.5dB(A)

Power (Watts)
2.4 W

RPM
9500 RPM
Termination
2 Wire Leads

Ingress Protection
–

Operating Temperature
14 ~ 158°F (-10 ~ 70°C)

Approval Agency
CE, CSA, UL, VDE

Weight
0.057 lb (25.85 g)

Current Rating (Amps)
0.100A

Voltage Range
14 ~ 27.6VDC

Material – Frame
Plastic

Material – Blade
Plastic

Lifetime @ Temp.
70000 Hrs @ 40°C

Base Product Number
AFB0424
