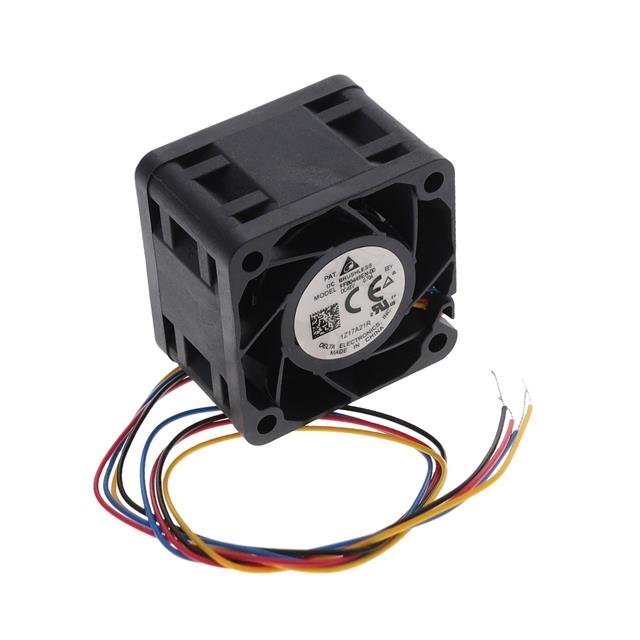

Delta DC Fans FFB1248HH-R00

US$145.97

Additional information

brand	Delta
Model Number	FFB1248HH-R00
weight	0.452 lb; 205.02 g
Description	FAN AXIAL 120X25.4MM 48VDC WIRE
Data	Fan Tubeaxial 48VDC Square – 120mm L x 120mm H Ball 114.7 CFM (3.21m³/min) 3 Wire Leads

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION
SELECT ALL
Category
Fans, Blowers, Thermal Management
Fans
DC Brushless Fans (BLDC)

Mfr
Delta Electronics

Series
FFB

Packaging
Bulk

Part Status
Obsolete

Voltage – Rated
48VDC

Size / Dimension
Square – 120mm L x 120mm H

Width
25.40mm

Air Flow
114.7 CFM (3.21m³/min)

Static Pressure
0.288 in H2O (71.7 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
Locked Rotor Sensor

Noise
49.7dB(A)

Power (Watts)
6.72 W

RPM
3100 RPM
Termination
3 Wire Leads

Ingress Protection
–

Operating Temperature
14 ~ 140°F (-10 ~ 60°C)

Approval Agency
CE, CSA, UL, VDE

Weight
0.452 lb (205.02 g)

Current Rating (Amps)
0.140A

Voltage Range
28 ~ 56VDC

Material – Frame
Plastic

Material – Blade
Plastic

Lifetime @ Temp.
70000 Hrs @ 40°C

Base Product Number
FFB1248
