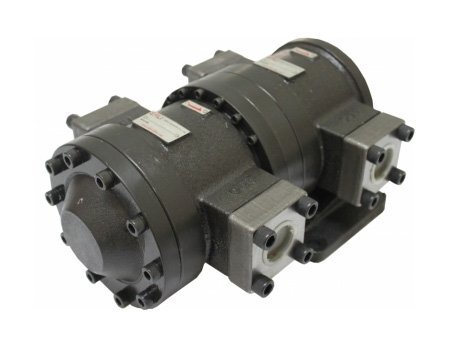

Ealy Vane Pump 150F-48LRL-50T-36

FEATURES
These pumps are designed for low noise level and high volumn efficiency.
Smooth running high stability and durability.
Inlet resistances are particularly considered in input-port design.
Maximum working pressure up to 70 kgf/cm² ( 1000 psi ).

MODEL:
150T
Adjustable type
48.61.75
94.116
125.150
Mounting:
F : Flange
L: foot
Rotating direction:
R : CW
L : CCW
Discharge portion( Shaft end )
R : Right side
L : Left side ( normal )
Shaft end ( c.c/rew )
Ø 30
Design number
10
WEIGHT kgf ( lbs ):
F : 150T : 24kg
F : 150F : 27.5kg
L: 150T: 24.2kg
L: 150F: 27.5kg
