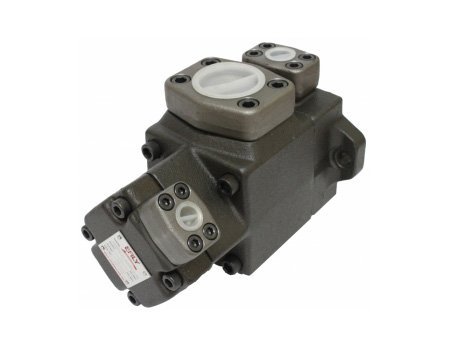

Ealy Vane Pump PV2R12-25-53FLEAR-40

FEATURES
These pumps are designed for low noise level and high volumn efficiency.
Smooth running high stability and durability.
Inlet resistances are particularly considered in input-port design.
210 kgf/cm² ( 1000 psi )
Maximum working pressure up to 210 kgf/cm² ( 1000 psi ).

MODEL:
PV2R12
Delivery capacity (c.c/rew)
( PV2R2 ) 26~65
Delivery capacity (c.c/rew)
( PV2R1 ) 6 ~31
Mounting:
F : Flange
L: foot
Rotating direction:
R : CW
L : CCW
Suction portion
( PV2R1 )
E : Left 45° Upward
E : 左上 45 °
Discharge portion ( Shaft end )
( PV2R2 )
A : Upward 上
B : Downward 下
R : Right side 右
L : Left side 左
Design number
40
WEIGHT kgf ( lbs ):
F : PV2R12: 26.3kg
L: PV2R12: 31.2kg
