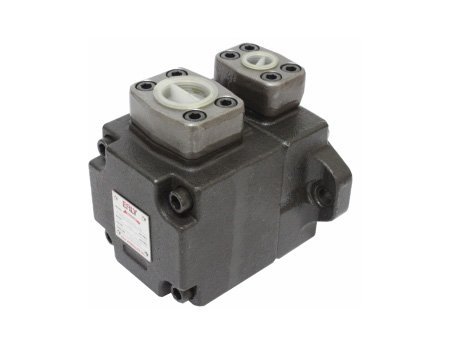

Ealy Vane Pump PV2R2-53FRLL-10

US$789.25

Additional information

brand	Ealy
weight	20.5KG
Model Number	PV2R2-53FRLL-10

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

FEATURES
Large flow rate and high pressure with more compact size of the pump on the market.
210 kgf/cm² ( 3000p.s.i. )
Maximum working pressure up to 210 kgf/cm² ( 3000p.s.i. )
Either inlet or outlet ports can be chosen for easien installation and maintainance.
Rotating directions ( clockwise or anticlockwise ) can also be free to select.

MODEL:
PV2R1
PV2R2
Delivery capacity (c.c/rew)
6 ~ 31
26 ~ 65
Mounting:
F : Flange
L: foot
Rotating direction:
R : CW
L : CCW
Discharge portion( Shaft end )
A : Upward
B : Downward
R : Right side
L : Left side
Suction portion ( Cover end )
A : Upward
B : Downward
R : Right side
L : Left side
Design number
10
WEIGHT kgf ( lbs ):
F : PV2R1 : 9.2kg
F : PV2R2:18.2kg
L: PV2R1: 10.7kg
L: PV2R2: 23kg

Ealy Vane Pump PV2R2-53FRLL-10
