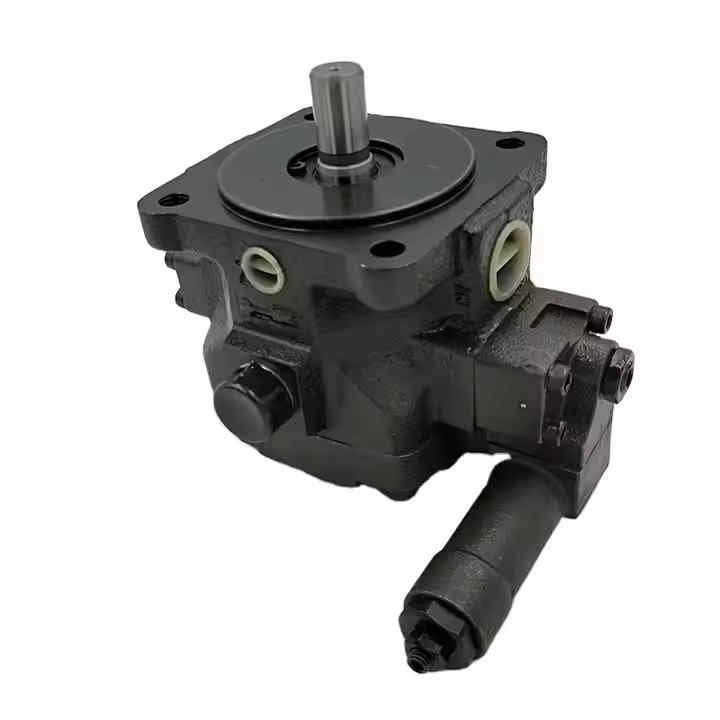

Ealy Vane Pump VDC-1C-F20C-9T

FEATURES
High efficienty, stabilize when high pessure operation
Low unpleasant noise, low vibration
Instant response for start and stop changing operation
Output flow stabilize with high pressure
High efficienty operation with low motor power-loss
Easy operation for pressure and flow adjustment

MODEL: VDC
A：Normal
B：Addition
C：Unload
Mounting:
F : Flange
L: foot
Standard delivery I/min ( 1800 rpm ):
20
25
30
40
54
70
86
Adjusting pressure range kgf/cm² :
A : 15~35 kgf/cm²
B : 20-70 kgf/cm²
C : 50-105 kgf/cm²
D :70-140 kgf/cm²
Design number:
20: straight key
9T：spline shaft
9TS：spline shaft
WEIGHT kgf ( lbs ):
F : VDC-1A.1B: 10.3 kg
F : VDC-2A.2B: 26.1 kg
L : VDC-1A.1B: 13.5 kg
L : VDC-2A.2B: 32.8 kg
