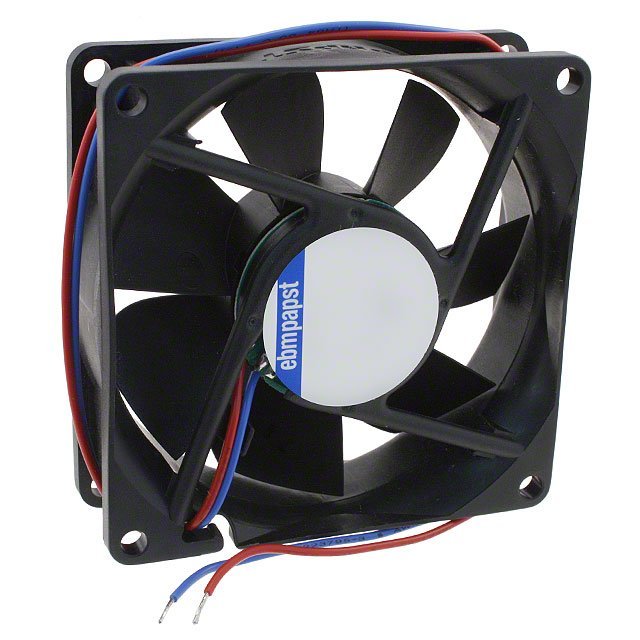

EBM-PAPST DC fan 3412NM

US$105.46

Additional information

brand	EBM-PAPST
Model Number	3412NM
weight	0.31 lb (140.61 g)
Data	Fan Tubeaxial 12VDC Square – 92mm L x 92mm H Ball 42.0 CFM (1.18m³/min) 2 Wire Leads
Description	FAN AXIAL 92X25.4MM 12VDC WIRE

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION
SELECT ALL
Category

Fans, Blowers, Thermal Management
Fans
DC Brushless Fans (BLDC)

Mfr
ebm-papst Inc.

Series
3400N

Packaging
Box

Part Status
Obsolete

Voltage – Rated
12VDC

Size / Dimension
Square – 92mm L x 92mm H

Width
25.40mm

Air Flow
42.0 CFM (1.18m³/min)

Static Pressure
–

Bearing Type
Ball

Fan Type
Tubeaxial

Features
–

Noise
28.0dB(A)

Power (Watts)
1.6 W

RPM
2300 RPM
Termination
2 Wire Leads

Ingress Protection
–

Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)

Approval Agency
–

Weight
0.31 lb (140.61 g)

Current Rating (Amps)
–

Voltage Range
8 ~ 15VDC

Material – Frame
Polybutylene Terephthalate (PBT), Fiberglass Reinforced

Material – Blade
Polyamide (PA), Nylon, Fiberglass Reinforced

Lifetime @ Temp.
75000 Hrs @ 40°C
