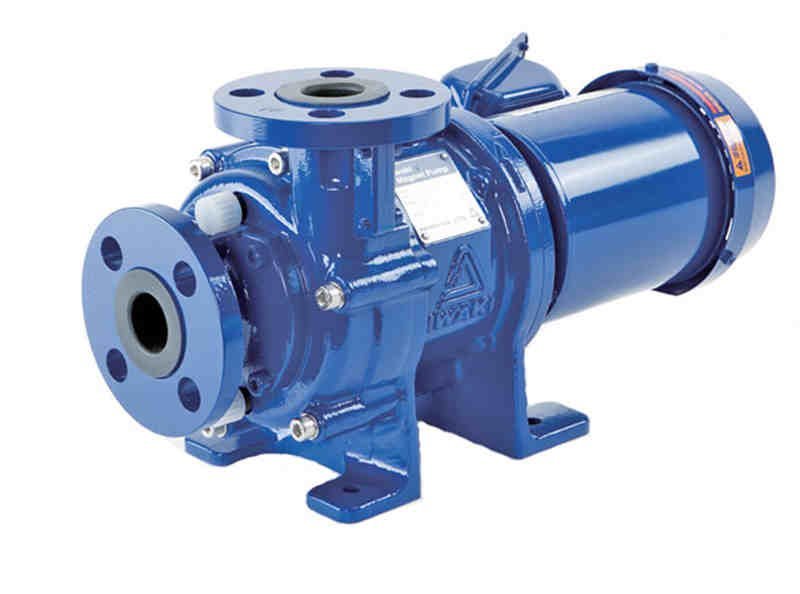

Iwaki Magnetic Drive Chemical Process Pumps MXM-4412FFEH

Iwaki Magnetic Drive Chemical Process Pumps MXM-4412FFEH

US$2,336.78

Additional information

brand

weight

22.5KG
Model Number

Contact us for formal quotation
  • Condition: 100% new condition.
  • Availability: 12 units in stock in the warehouse.
  • Delivery time: 3-7 workdays after confirm your payment.
  • MOQ: 1 unit.
  • Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
  • Warranty: 1 year.
  • Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
  • Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
  • Online support: 24-hour online customer service.
  • Refund term: 30 days money back guarantee.

MXM-4412FFEH

Iwaki America MXM-4412FFEH MXM Series Magnetic Drive Chemical Process Pump. CFR-ETFE (Carbon-Fiber Reinforced ETFE) Casing, High Purity Alumina Ceramic Bearing, High Purity Alumina Ceramic Liner Ring & Spindle, EPDM O-Rings. 1-1/2″ Suction, 1-1/2″ Discharge 150# ANSI Flanged Connections, 56C Frame, Less Motor.

Bearing Material High Purity Alumina Ceramic
Casing Material CFR-ETFE (Carbon-Fiber Reinforced ETFE)
Connection Type 150# ANSI Flanged
Discharge NPT (Inches) 1-1/2″
Heads To (Feet) 80 Feet
HP 1
Impeller Code 2
Impeller Material CFR-ETFE (Carbon-Fiber Reinforced ETFE)
Maximum Flow (GPM) 75 GPM
Maximum Pressure (PSI) 101.5 psi
Model Series MXM-44_2

Motor No Motor
Motor Enclosure Type N/A
Motor Frame Size 56C
Motor Type Less Motor
Other Factors Rear Casing with Cover
Spindle Material High Purity Alumina Ceramic
Suction NPT (Inches) 1-1/2″
Thrust Ring High Purity Alumina Ceramic
Valve / Seat / O-Ring EPDM
