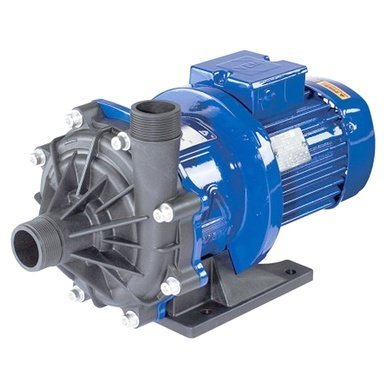

Iwaki Magnetic Drive Chemical Transfer Pumps MX-F401RFAX

MX-F401RFAX

Iwaki America MX-F401RFAX MX-F Series Magnetic Drive Chemical Transfer Pump. CFR-ETFE (Carbon-Fiber Reinforced ETFE) Casing & 50/60 Hz Impeller, PTFE Bearing, High Purity Alumina Ceramic Spindle, Alumina Ceramic Liner Ring, Aflas O-Rings. 1.5″ Suction, 1.5″ Discharge NPT Connections, 56C Frame, Less Motor.

Bearing Material PTFE
Casing Material CFR-ETFE (Carbon-Fiber Reinforced ETFE)
Connection Type NPT
Discharge NPT (Inches) 1.5″
Heads To (Feet) 50 Feet
HP 1.5
Impeller Code X
Impeller Material CFR-ETFE (Carbon-Fiber Reinforced ETFE)
Impeller Style 50/60 Hz
Maximum Flow (GPM) 75 GPM
Model Series MX-F401

Motor No Motor
Motor Enclosure Type N/A
Motor Frame Size 56C
Motor Type Less Motor
Spec. Gravity 1.2
Spindle Material High Purity Alumina Ceramic
Suction NPT (Inches) 1.5″
Thrust Ring Alumina Ceramic
Valve / Seat / O-Ring Aflas
