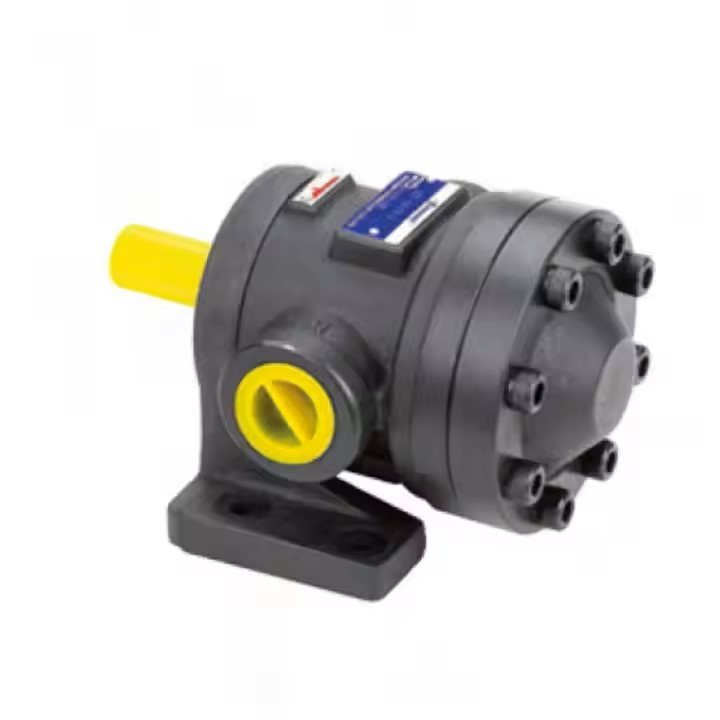

KCL Vane Pump 50T-12-F-R-02

Performance Parameters of 50T & 150T Series Fixed Displacement Low-Pressure Pumps
50T Series:

Model 09:
Flow Rate without Load (L/min): 1000rpm—, 1200rpm10.8, 1500rpm13.5, 1800rpm16.2;
Speed Range: Max 1800rpm, Min 950rpm;
Weight: Foot Type 10Kg, Flange Type 9.5Kg;
Max Pressure: 105 Kgf/cm².
Model 12:
Flow Rate: 1000rpm12.0, 1200rpm14.4, 1500rpm18.0, 1800rpm21.6;
Speed Range, Weight, and Pressure are the same as Model 09.
Model 14:
Flow Rate: 1000rpm14.6, 1200rpm17.5, 1500rpm21.7, 1800rpm26.1;
Other parameters are the same as Model 09.
Model 17:
Flow Rate: 1000rpm17.0, 1200rpm20.3, 1500rpm25.5, 1800rpm31.5;
Other parameters are the same as Model 09.
Model 19:
Flow Rate: 1000rpm19.2, 1200rpm23.0, 1500rpm28.8, 1800rpm34.6;
Other parameters are the same as Model 09.
Model 21:
Flow Rate: 1000rpm21.1, 1200rpm25.3, 1500rpm31.7, 1800rpm38.0;
Other parameters are the same as Model 09.
Model 23:
Flow Rate: 1000rpm23.0, 1200rpm27.6, 1500rpm34.5, 1800rpm41.4;
Other parameters are the same as Model 09.
Model 26:
Flow Rate: 1000rpm26.2, 1200rpm31.4, 1500rpm39.3, 1800rpm47.2;
Other parameters are the same as Model 09.
Model 30:
Flow Rate: 1000rpm30.1, 1200rpm36.1, 1500rpm45.2, 1800rpm54.0;
Other parameters are the same as Model 09.
Model 36:
Flow Rate: 1000rpm36.2, 1200rpm43.4, 1500rpm54.3, 1800rpm—;
Speed Range: Max 1500rpm, Min 950rpm;
Weight is the same as Model 09;
Max Pressure: 70 Kgf/cm².
Model 40:
Flow Rate: 1000rpm41.5, 1200rpm49.8, 1500rpm—, 1800rpm—;
Speed Range: Max 1200rpm, Min 950rpm;
Weight is the same as Model 09;
Max Pressure: 70 Kgf/cm².

150T Series:

Model 48:
Flow Rate: 1000rpm48.3, 1200rpm57.9, 1500rpm72.4, 1800rpm86.9;
Speed Range: Max 1800rpm, Min 900rpm;
Weight: Foot Type 24Kg, Flange Type 24Kg;
Max Pressure: 90 Kgf/cm².
Model 61:
Flow Rate: 1000rpm61.5, 1200rpm73.8, 1500rpm92.2, 1800rpm110.7;
Speed Range, Weight, and Pressure are the same as Model 48.
Model 75:
Flow Rate: 1000rpm75.2, 1200rpm90.6, 1500rpm113.2, 1800rpm135.9;
Speed Range: Max 1500rpm, Min 900rpm;
Weight is the same as Model 48;
Max Pressure: 90 Kgf/cm².
Model 94:
Flow Rate: 1000rpm94.2, 1200rpm113.0, 1500rpm141.3, 1800rpm—;
Speed Range: Max 1500rpm, Min 900rpm;
Weight is the same as Model 48;
Max Pressure: 70 Kgf/cm².
Model 116:
Flow Rate: 1000rpm116.3, 1200rpm139.6, 1500rpm—, 1800rpm—;
Speed Range: Max 1200rpm, Min 900rpm;
Weight is the same as Model 48;
Max Pressure: 70 Kgf/cm².
Model 125:
Flow Rate: 1000rpm125.3, 1200rpm150.4, 1500rpm—, 1800rpm—;
Speed Range: Max 1200rpm, Min 900rpm;
Weight is the same as Model 48;
Max Pressure: 70 Kgf/cm².
