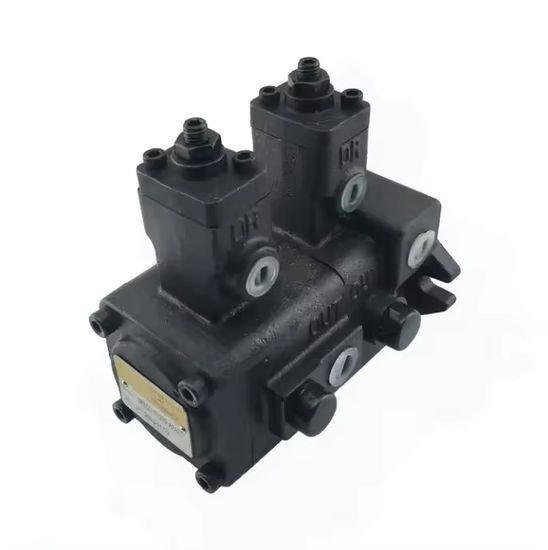

KCL Vane Pump VPKCC-F2323-A2

KCL VPKCC series pump Performance Parameters
① VPKCC- Series Number
Double Pump (Series number, double pump)
② F Flange Type (Flange type)
③ * Output Flow
Shaft End Pump at 1800rpm
12, 15, 20 (ℓ/min) (Output flow of the shaft end pump at 1800rpm, optional 12, 15, 20 liters per minute)
④ * Output Flow
Cover End Pump at 1800rpm
12, 15, 20 (ℓ/min) (Output flow of the cover end pump at 1800rpm, optional 12, 15, 20 liters per minute)
⑤ A* Pressure Range
of Shaft End Pump (P1)
1: 5 – 18 2: 15 – 35
3: 30 – 55 4: 50 – 70 (Kgf/cm²) (Pressure range of the shaft end pump (P1), 1 corresponds to 5 – 18Kgf/cm², 2 corresponds to 15 – 35Kgf/cm², 3 corresponds to 30 – 55Kgf/cm², 4 corresponds to 50 – 70Kgf/cm²)
⑥ A* Pressure Range
of Cover End Pump (P2)
1: 5 – 18 2: 15 – 35
3: 30 – 55 4: 50 – 70 (Kgf/cm²) (Pressure range of the cover end pump (P2), 1 corresponds to 5 – 18Kgf/cm², 2 corresponds to 15 – 35Kgf/cm², 3 corresponds to 30 – 55Kgf/cm², 4 corresponds to 50 – 70Kgf/cm²)
⑦ -01- Shaft Type (Shaft type)
⑧ A Type of Suction Port & Discharge Port
A or No Marking: PT
B: NPT
C: SAE
D: BSP (Type of suction port and discharge port; A or no marking means PT; B means NPT; C means SAE; D means BSP)
