Mechatronics AC Fans LPH80B99-BWHR-PC

Additional information

brand	Mechatronics
Model Number	LPH80B99-BWHR-PC
weight	0.209 lb (94.89 g)

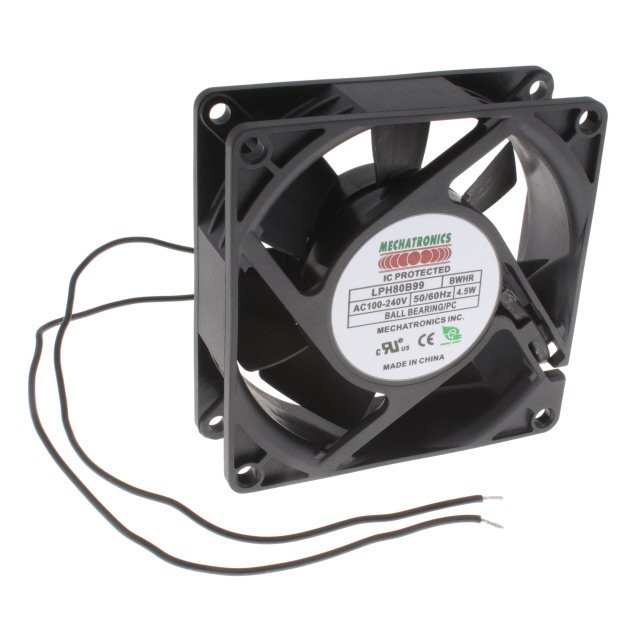

Description	EC FAN AXIAL 80 X 80 X 25MM W/PA
Data	Fan Tubeaxial 100 ~ 240VAC Square – 80mm L x 80mm H Ball 39.0 CFM (1.09m³/min) 2 Wire Leads

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION

SELECT ALL
Category
Fans, Blowers, Thermal Management
Fans
AC Fans

Manufacturer
Mechatronics Fan Group

Series
LPH80B99

Packaging
Bulk

Part Status
Active

Voltage – Rated
100 ~ 240VAC

Size / Dimension
Square – 80mm L x 80mm H

Width
25.50mm

Air Flow
39.0 CFM (1.09m³/min)

Static Pressure
0.250 in H2O (62.3 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
Auto Restart, Electronic Commutation (EC), Parylene Coating

Noise
31.0dB(A)

Power (Watts)
4.50W

RPM
3500 RPM
Termination
2 Wire Leads

Ingress Protection
IP55 – Dust Protected, Water Resistant

Operating Temperature
–

Approval Agency
–

Weight

0.209 lb (94.89 g)

Current Rating (Amps)
0.060A

Voltage Range
90 ~ 264VAC

Material – Frame
Plastic

Material – Blade
Plastic

Lifetime @ Temp.
–

Base Product Number
LPH80
