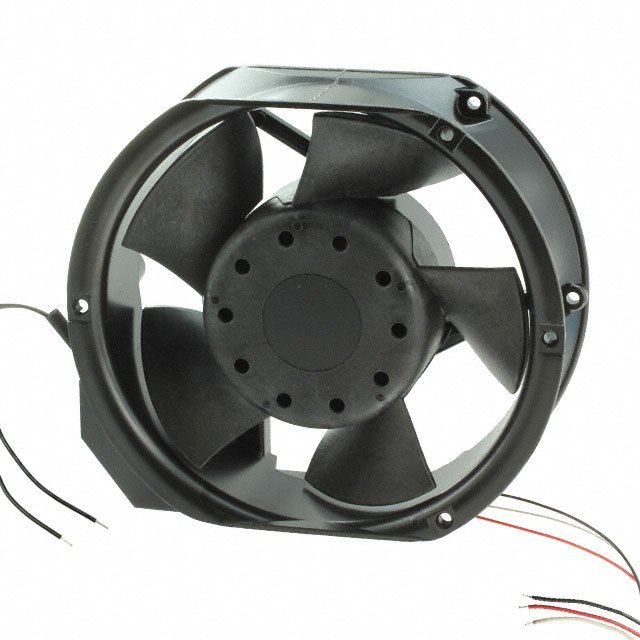

Mechatronics AC Fans UF15KC12/23-BWHNSR-L36

Additional information

brand	Mechatronics
Model Number	UF15KC12/23-BWHNSR-L36
weight	Contact us for shipping weight
Description	FAN AXIAL 172X55MM 115/230VAC
Data	Fan Tubeaxial 115/230VAC Rectangular/Rounded – 172mm L x 150mm H Ball 293.0 CFM (8.20m³/min) 4 Wire Leads

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION

SELECT ALL
Category
Fans, Blowers, Thermal Management
Fans
AC Fans

Manufacturer
Mechatronics Fan Group

Series
UF15KC

Packaging
Bulk

Part Status
Active

Voltage – Rated
115/230VAC

Size / Dimension
Rectangular/Rounded – 172mm L x 150mm H

Width
55.00mm

Air Flow
293.0 CFM (8.20m³/min)

Static Pressure
0.900 in H2O (224.2 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
Dual Voltage, Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)

Noise
60.0dB(A)

Power (Watts)
38.00W

RPM
3400 RPM
Termination
4 Wire Leads

Ingress Protection
IP55 – Dust Protected, Water Resistant

Operating Temperature
-40 ~ 158°F (-40 ~ 70°C)

Approval Agency
CE, cUL, UL

Weight

2.3 lbs (1 kg)

Current Rating (Amps)
0.170A/0.340A

Voltage Range
–

Material – Frame
Aluminum

Material – Blade
Polybutylene Terephthalate (PBT)

Lifetime @ Temp.
–

Base Product Number
UF15K
