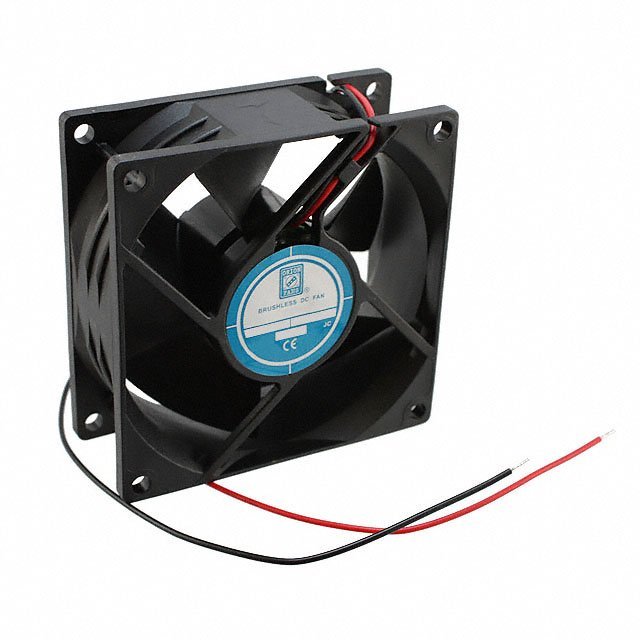

Orion DC fans OD172SAP-24MBIP68

Additional information

brand	Orion
Model Number	OD172SAP-24MBIP68
weight	1.8 lb; 800.0 g
Data	Fan Tubeaxial 24VDC Rectangular/Rounded – 172mm L x 150mm H Ball 180.0 CFM (5.04m³/min) 2 Wire Leads
Description	FAN AXIAL 172X51MM 24VDC WIRE

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION

SELECT ALL
Category
Fans, Blowers, Thermal Management
Fans
DC Brushless Fans (BLDC)

Mfr
Orion Fans

Series
OD172SAP

Packaging
Box

Part Status
Active

Voltage – Rated
24VDC

Size / Dimension
Rectangular/Rounded – 172mm L x 150mm H

Width
51.00mm

Air Flow
180.0 CFM (5.04m³/min)

Static Pressure
0.510 in H2O (127.0 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
Auto Restart

Noise
42.0dB

Power (Watts)
13 W

RPM
2500 RPM
Termination
2 Wire Leads

Ingress Protection
IP68 – Dust Tight, Waterproof

Operating Temperature
5 ~ 149°F (-15 ~ 65°C)

Approval Agency
cURus, TUV

Weight

1.8 lb (800.0 g)

Current Rating (Amps)
0.520A

Voltage Range
–

Material – Frame
Polybutylene Terephthalate (PBT)

Material – Blade
Polybutylene Terephthalate (PBT)

Lifetime @ Temp.
90000 Hrs @ 35°C

Base Product Number
OD172SAP
