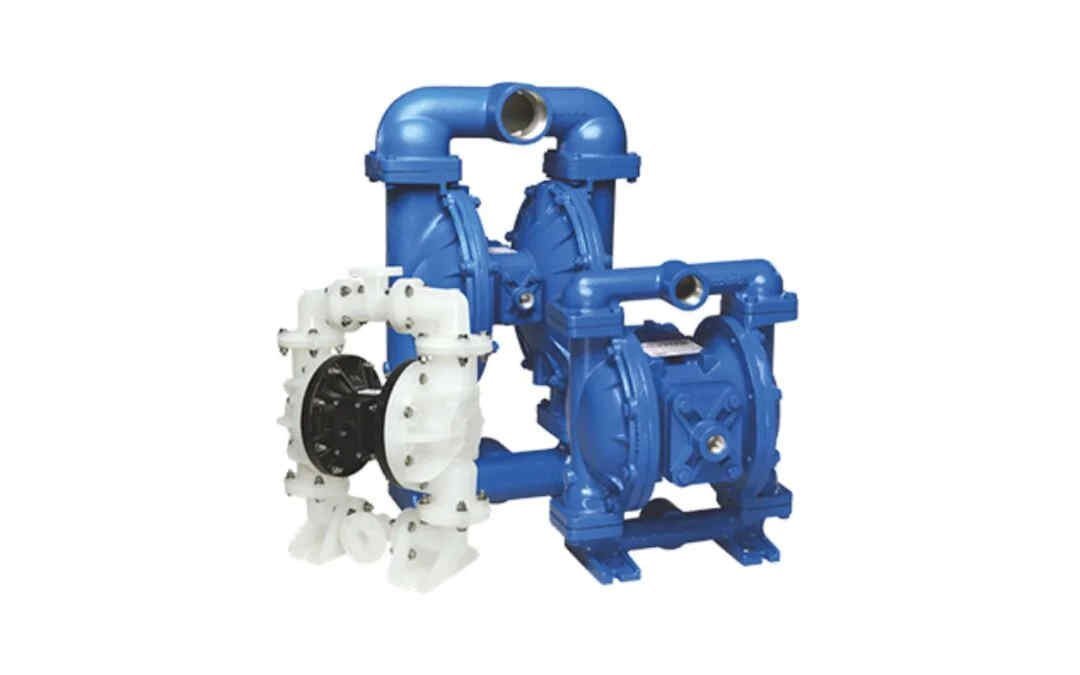

Sandpiper Double Diaphragm Pump, Aluminum, Air Operated, PTFE – Neoprene Backup SB1,SGN5A.

imensions
Inlet/Outlet Size 1 in
Air Inlet Size 1/2 in FNPT
Manufacturers Warranty Length 5 yr
Width 11 3/4 in
Height 14 7/16 in
Max. Dia. Solids 1/4 in
Length 13 9/32 in
Overall Length 13.3 in
Overall Width 11.8 in
Overall Height 14.4 in
Media Intake Connection Size 1 in
Air Intake Connection Size 1 in
Media Discharge Connection Size 1 in
Solid Diameter (Maximum) 0.25 in
Details
Item Double Diaphragm Pump
Diaphragm Material PTFE
Housing Material – Pumps Aluminum
Flow Rate (Maximum) 42 gpm
Diaphragm Material – Pumps PTFE – Neoprene Backup
Valve Type Ball
Max. Flow 42 gpm
Item – Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp – Pumps 220 Degrees F
Connection Style NPT
Agency Compliance ABS, ATEX, CE
Body Material Aluminum
Max. Operating Pressure 125 psi
Manifold Connection Single Port
Max. Temp. 220 Degrees F
Ball Material PTFE
Check Seat Material 316 Stainless Steel
Operation Type Air Operated
Self-Priming Wet 25 ft
Max. Flow GPM 42 gpm
Self-Priming Dry 20 ft
Standards ABS Type Approved, CE Certified, EAC, ISO
Priming Self-Priming
Air Consumption (Maximum) 50 scfm
Air Intake Pressure (Maximum) 125 psi
For Use With Potable Systems No
Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water
Air Intake Connection Type NPT
Feet of Head (Maximum) 289 ft
Flow Rate @ 20 psi 26 gpm
Media Intake Connection Type NPT
Flow Rate @ 100 psi 40 gpm
Operating Pressure (Maximum) 125 psi
Valve Material PTFE
Media Temperature (Maximum) 220 Degrees F
Media Temperature (Minimum) -40 Degrees F
Flow Rate @ 60 psi 35.3 gpm
Flow Rate @ 40 psi 34.8 gpm
Series Family SB1
Media Intake Location Bottom, Center
Pump Assembly Type Bolt
Media Discharge Location Center, Top
Manifold Connection Type NPT
Non-Wetted Housing Material Aluminum
Wetted Housing Material Aluminum
Media Discharge Connection Type NPT
Flow Rate @ 80 psi 34.6 gpm
