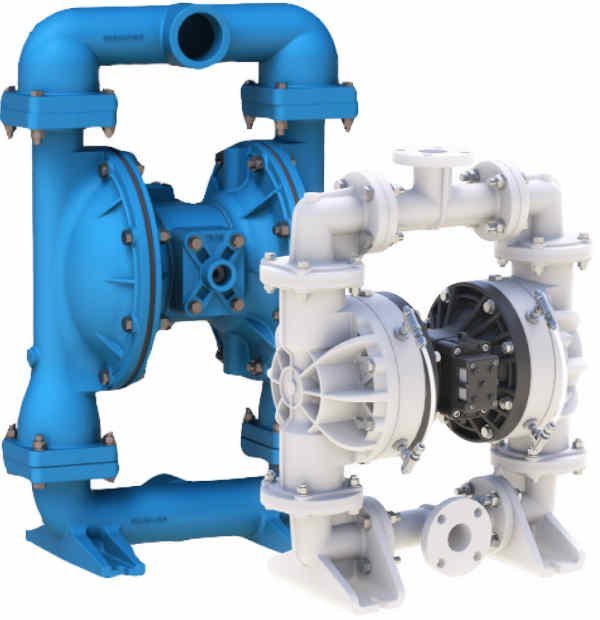

Sandpiper Double Diaphragm Pump, Polypropylene, Air Operated, 100 GPM S15B3P2PPUS000.

Dimensions
Inlet/Outlet Size 1 1/2 in
Air Inlet Size 3/4 in FNPT
Length 13 in
Height 28 3/4 in
Max. Dia. Solids 1/4 in
Width 23 in
Manufacturers Warranty Length 1 yr
Overall Length 13 in
Overall Width 23 in
Overall Height 28.8 in
Solid Diameter (Maximum) 0.25 in
Media Discharge Connection Size 1 1/2 in
Media Intake Connection Size 1 1/2 in
Air Intake Connection Size 3/4 in
Details
Item Double Diaphragm Pump
Diaphragm Material PTFE
Housing Material – Pumps Polypropylene
Flow Rate (Maximum) 100 gpm
Diaphragm Material – Pumps PTFE – Santoprene(R) Backup
Valve Type Ball
Max. Flow 100 gpm
Item – Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp – Pumps 180 Degrees F
Connection Style Flange
Agency Compliance ATEX, CE, EAC
Body Material Polypropylene
Self-Priming Wet 15 ft
Ball Material PTFE
Max. Operating Pressure 100 psi
Max. Flow GPM 100 gpm
Check Seat Material Polypropylene
Operation Type Air Operated
Manifold Connection Single Port
Self-Priming Dry 19 1/2 ft
Max. Temp. 180 Degrees F
For Use With Intermittent/on-demand, Moderately Abrasive Fluids, and Suspended Solids
Standards ATEX Certified, CE Certified, EAC
Non-Wetted Housing Material Polypropylene
For Use With Potable Systems No
Flow Rate @ 20 psi 60.7 gpm
Pump Assembly Type Bolt
Operating Pressure (Maximum) 100 psi
Air Consumption (Maximum) 95 scfm
Wetted Housing Material Polypropylene
Media Temperature (Maximum) 180 Degrees F
Flow Rate @ 60 psi 94.1 gpm
Media Intake Location Bottom, Center
Media Discharge Location Center, Top
Feet of Head (Maximum) 231 ft
Flow Rate @ 80 psi 111.8 gpm
Valve Material PTFE
Air Intake Connection Type FNPT
Flow Rate @ 40 psi 78.2 gpm
Air Intake Pressure (Maximum) 100 psi
Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water
Media Discharge Connection Type Flange
Media Intake Connection Type Flange
Flow Rate @ 100 psi 125 gpm
Manifold Connection Type Flange
Priming Self-Priming
