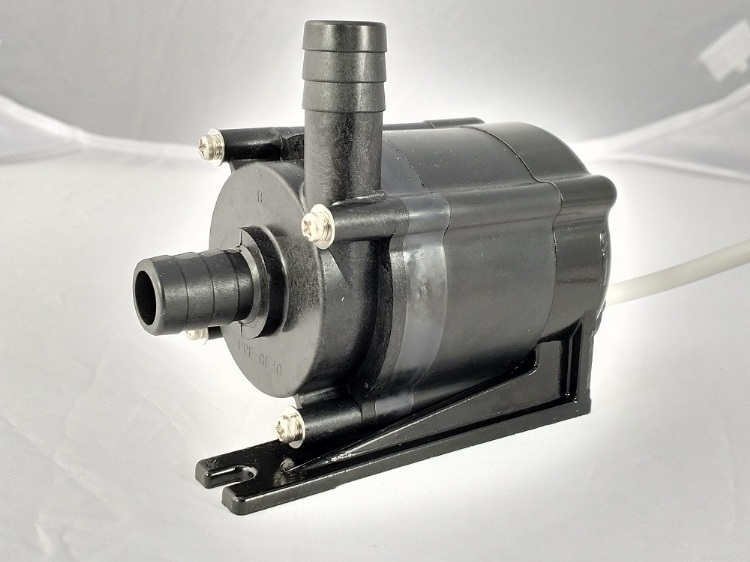

Sanso Pump PD-E51 W2A

The MDP Pumping Solutions presents the Sanso Pump PD – E 51 W2A, a high-performance centrifugal magnetic drive pump designed for specialist applications. This pump is manufactured by the renowned Japanese company, Sanso.

The PD – E 51 W2A is constructed from either Polypropylene or Noryl, depending on compatibility requirements. It is fitted with a magnetic drive for fluid containment and is coupled to either 12V, 24V or 48V DC electric motors. The magnetic drive ensures fluid containment within the pump due to the absence of a mechanical seal. This makes it a low maintenance design that eliminates concerns of product leakage normally associated with mechanically sealed pumps.

This pump is robust and resistant, making it suitable for demanding applications. It is designed for lower flow rates up to 1.5m³/hr, making it ideal for applications such as fuel cells, marine cooling, solar thermal heating, laser cooling, cooling of medical equipment, and chiller/cooler circulation.

The Sanso Pump PD – E 51 W2A has a total head of 18m, with a rated flow rate of 25L/min. It also features speed control, making it adaptable to a variety of operational needs.

Weight
1,7 kg
Dimensions
160 × 150 × 130 cm
Brand
Sanso

Manufacturer Part Number
PD – E 51 W2A

Pump Type
Magnetic Drive Centrifugal

Voltage(W)
24

Input Power
160

Min Flow Rate
3

Max Flow Rate
27

Max Head
18

Pump Materials
Ryton glass filled

Min Temp
-20

Max Temp
40

Max Viscosity
1,6736

Specific Gravity of Fluid
1,2

Type of Connections
Threaded

Inlet Size
3/4″

Outlet Size
3/4″

Drive
Magnetic
