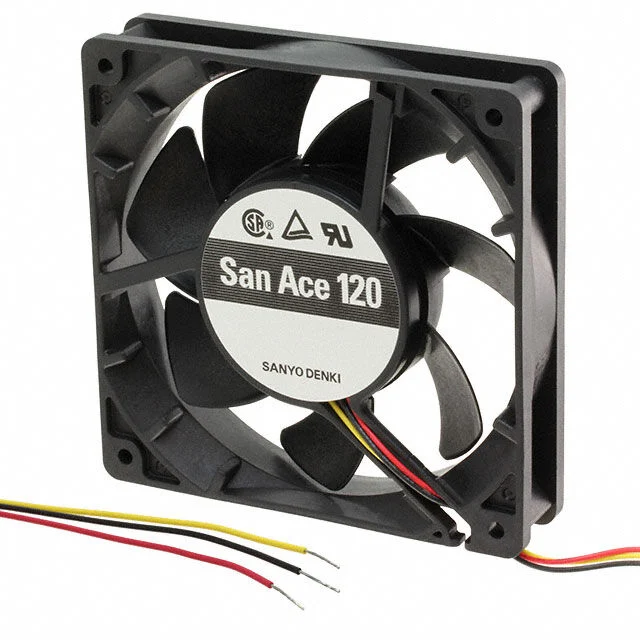

Sanyo Fan 9G0924A201

US$81.99

Additional information

brand	Sanyo
Model Number	9G0924A201
weight	0.375 lb (170.1 g)
Description	FAN AXIAL 92X32MM 24VDC WIRE
Specification	Fan Tubeaxial 24VDC Square – 92mm L x 92mm H Ball 88.3 CFM (2.47m³/min) 3 Wire Leads

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION
SELECT ALL
Category

Fans, Blowers, Thermal Management
Fans
DC Brushless Fans (BLDC)

Mfr
Sanyo Denki America Inc.

Series
San Ace 92

Packaging
Box

Part Status
Active

Voltage – Rated
24VDC

Size / Dimension
Square – 92mm L x 92mm H

Width
32.00mm

Air Flow
88.3 CFM (2.47m³/min)

Static Pressure
0.462 in H2O (115.2 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
Locked Rotor Protection, Speed Sensor (Tach)

Noise
44.0dB(A)

Power (Watts)
7.2 W

RPM
4300 RPM
Termination
3 Wire Leads

Ingress Protection
–

Operating Temperature
-4 ~ 140°F (-20 ~ 60°C)

Approval Agency
CSA, TUV, UL

Weight
0.375 lb (170.1 g)

Current Rating (Amps)
0.300A

Voltage Range
20.4 ~ 27.6VDC

Material – Frame
Plastic

Material – Blade
Plastic

Lifetime @ Temp.
40000 Hrs @ 60°C

Base Product Number
9G0924
