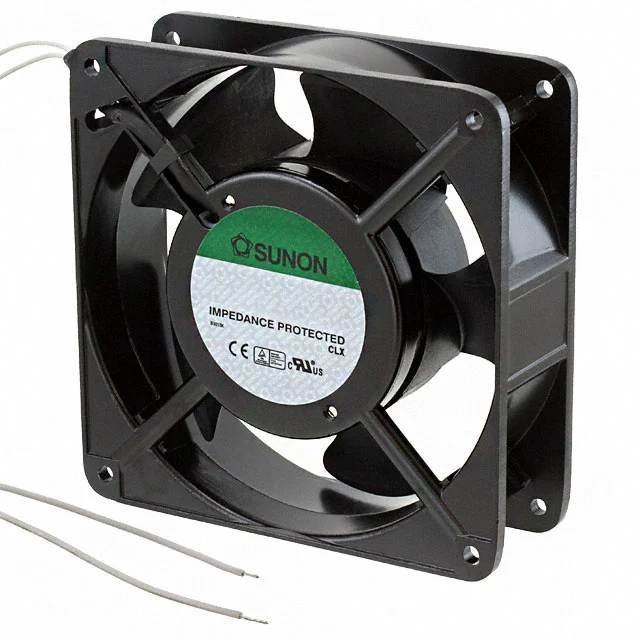

Sunon AC Fans CF2207LBL-000U-HB9

US$101.31

Additional information

brand	Sunon
Model Number	CF2207LBL-000U-HB9
weight	2.4 lbs (1.1 kg)
Data	Fan Tubeaxial 220 ~ 240VAC Round – 250mm Dia Ball 186.0 ~ 278.8 CFM (5.21 ~ 7.81m³/min)
Description	FAN AXIAL 250X77.4MM 220~240VAC

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION

SELECT ALL
Category
Fans, Blowers, Thermal Management
Fans
AC Fans

Manufacturer
Sunon Fans

Series
CF

Packaging
Bulk

Part Status
Last Time Buy

Voltage – Rated
220 ~ 240VAC

Size / Dimension
Round – 250mm Dia

Width
77.40mm

Air Flow
186.0 ~ 278.8 CFM (5.21 ~ 7.81m³/min)

Static Pressure
0.160/0.300 in H2O (39.8/74.7 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP)

Noise
29.9/41.2dB(A)

Power (Watts)
3.20W, 6.60W

RPM
950/1400 RPM
Termination
–

Ingress Protection
IP55 – Dust Protected, Water Resistant

Operating Temperature
-40 ~ 122°F (-40 ~ 50°C)

Approval Agency
ATEX, CE, CUR, TUV, UL

Weight
2.4 lbs (1.1 kg)

Current Rating (Amps)
0.038/0.070A

Voltage Range
180 ~ 250VAC

Material – Frame
Polybutylene Terephthalate (PBT)

Material – Blade
Polybutylene Terephthalate (PBT)

Lifetime @ Temp.
–

Base Product Number
CF2207LBL
