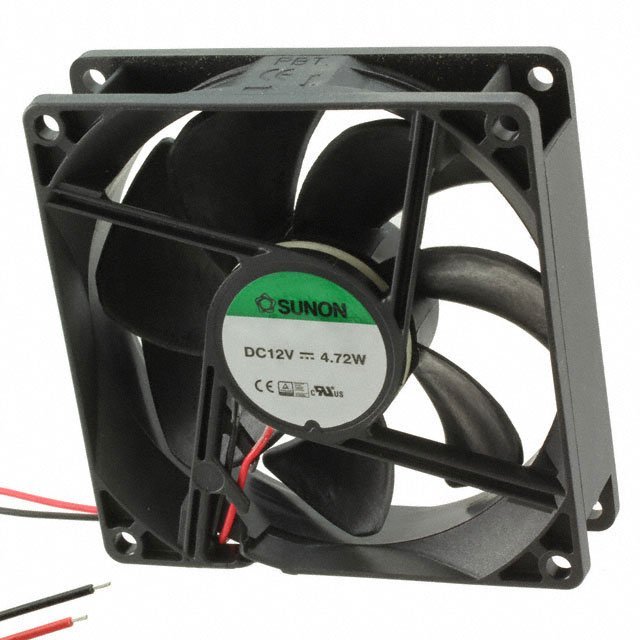

Sunon DC Fans EE92252B2-000U-999

US$36.52

Additional information

brand	Sunon
Model Number	EE92252B2-000U-999
weight	0.207 lb (93.89 g)
Data	Fan Tubeaxial 24VDC Square – 92mm L x 92mm H Ball 45.0 CFM (1.26m³/min) 2 Wire Leads
Description	FAN AXIAL 92X25MM 24VDC WIRE

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

TYPE

DESCRIPTION

SELECT ALL
Category
Fans, Blowers, Thermal Management
Fans
DC Brushless Fans (BLDC)

Mfr
Sunon Fans

Series
EE

Packaging
Tray

Part Status
Obsolete

Voltage – Rated
24VDC

Size / Dimension
Square – 92mm L x 92mm H

Width
25.00mm

Air Flow
45.0 CFM (1.26m³/min)

Static Pressure
0.130 in H2O (32.4 Pa)

Bearing Type
Ball

Fan Type
Tubeaxial

Features
–

Noise
32.0dB(A)

Power (Watts)
1.7 W

RPM
2700 RPM
Termination
2 Wire Leads

Ingress Protection
–

Operating Temperature
14 ~ 158°F (-10 ~ 70°C)

Approval Agency
CE, CUR, TUV, UL

Weight
0.207 lb (93.89 g)

Current Rating (Amps)
0.070A

Voltage Range
10 ~ 27.6VDC

Material – Frame
Polybutylene Terephthalate (PBT)

Material – Blade
Polybutylene Terephthalate (PBT)

Lifetime @ Temp.
50000 Hrs @ 25°C

Base Product Number
EE92252B2
