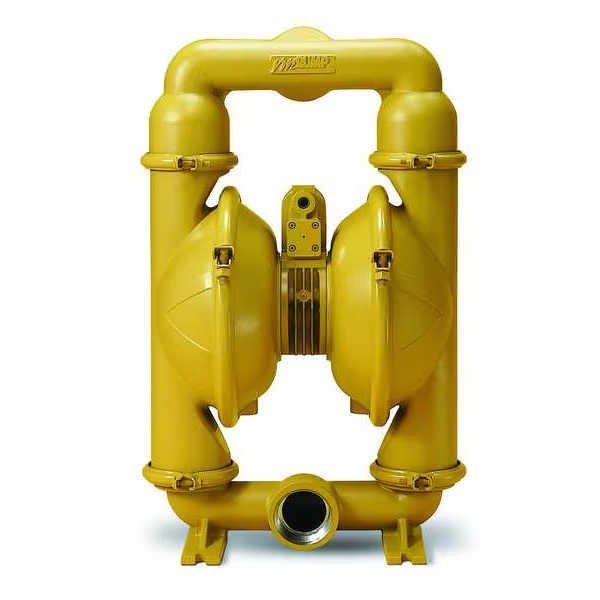

Versa-Matic Diaphragm Pump E4AA2R220-ATEX

Dimensions
Inlet/Outlet Size 1 1/4 in
Air Inlet Size 1/2 in FNPT
Width 14 1/4 in
Manufacturers Warranty Length 1 yr
Max. Dia. Solids 3/16 in
Height 18 in
Length 11 1/2 in
Overall Width 14.3 in
Overall Height 18 in
Overall Length 11.5 in
Media Intake Connection Size 1 1/4 in
Solid Diameter (Maximum) 0.19 in
Air Intake Connection Size 1/2 in
Media Discharge Connection Size 1 1/4 in
Details
Item Double Diaphragm Pump
Diaphragm Material Buna-N
Housing Material – Pumps Aluminum
Flow Rate (Maximum) 71 gpm
Diaphragm Material – Pumps Buna N
Max. Flow 70 gpm
Valve Type Ball
Item – Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp – Pumps 180 Degrees F
Connection Style NPT
Agency Compliance CE, EAC
Self-Priming Wet 25 ft
Check Seat Material Buna-N
Max. Temp. 180 Degrees F
Max. Flow GPM 70 gpm
Operation Type Air Operated
Ball Material Buna N
Max. Operating Pressure 125 psi
Manifold Connection Single Port
Self-Priming Dry 15 ft
Body Material Aluminum
Standards CE Certified, EAC
Flow Rate @ 80 psi 66.4 gpm
Media Discharge Connection Type NPT
Air Consumption (Maximum) 70 scfm
Flow Rate @ 20 psi 39.6 gpm
Non-Wetted Housing Material Aluminum
Operating Pressure (Maximum) 125 psi
Priming Self-Priming
Media Discharge Location Center, Top
Media Intake Connection Type FNPT
Flow Rate @ 100 psi 69.6 gpm
Flow Rate @ 40 psi 54.2 gpm
Duty Cycle Continuous
Feet of Head (Maximum) 281 ft
Valve Material Buna-N
Air Intake Connection Type FNPT
Media Temperature (Maximum) 180 Degrees F
Manifold Connection Type NPT
Pump Assembly Type Clamp
Wetted Housing Material Aluminum
Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
Flow Rate @ 60 psi 61 gpm
Air Intake Pressure (Maximum) 125 psi
Series Family E4
For Use With Potable Systems No
Media Intake Location Bottom, Center
