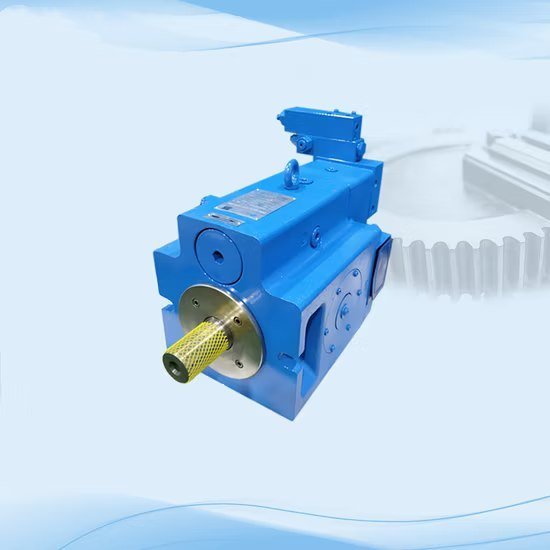

Vickers Hydrokraft heavy-duty open-circuit piston pumps PVWF-360M07L00G1R01SKLASPC03A4C03A4K000V0000046200040 (spare parts avialable)

Vickers Hydrokraft heavy-duty open-circuit piston pumps PVWF-360M07L00G1R01SKLASPC03A4C03A4K000V0000046200040 (spare parts avialable)

Contact us for a quote

Additional information

brand

Model Number

Part Number

HC806172050403
weight

Contact us for shipping weight
Spare Parts

Contact us for formal quotation
  • Condition: 100% new condition.
  • Availability: 12 units in stock in the warehouse.
  • Delivery time: 3-7 workdays after confirm your payment.
  • MOQ: 1 unit.
  • Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
  • Warranty: 1 year.
  • Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
  • Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
  • Online support: 24-hour online customer service.
  • Refund term: 30 days money back guarantee.

Specification

  • Pump：Open loop pump
  • Displacement type：Variable
  • Series：W-Series
  • Configuration：Front unit
  • Displacement：360 ccm/rev
  • Basic Standard：Metric
  • MOUNTING FLANGE：ISO3019/2-200B4HW
  • Rotation direction：Counter-clockwise
  • Max displacement set：Max Disp Adj Screw
  • Thru drive options：ISO 160B4
  • Main port：SAE Port Metric Bolts
  • Main port orientation：Radial (side ports)
  • Main drive shaft end：ISO Straight key
  • Drive shaft seal config：Single shaft seal
  • Seal material：FKM with HP lubrication
  • Yoke position indicator：Current &+visual indi. (new)
  • Surface coating：Primer jet black RAL 9005
  • Control type：Proportional valve
  • Disp adj options：CETOP 3 prop.Valve KDG4V-3
  • Electronic amplifier：ER9.3 Amplifier
  • Yoke displacement zone：Single s.(dep. on control typ)
  • Additional functions：Pressure limiter override (ST)
  • Pressure control options：Prop.relief valve & elec. card
  • Power control：None/ n/a (depend. on control)
  • Pilot oil filter：Filter w. el. + vis. Indicator
  • V-valve_pilot oil sup：No venting valve
  • Position monitoring：Not applicable
  • Electric motor type：Not applicable
  • Control voltage：Not applicable
  • Customer adjustment：Per data Spec. in CA table no.
  • Special feature：None（值：NN）
  • Design number：Per data spec. in D. table 40
  • Brand：Danfoss
  • IPM FRAME SIZE：PVW-360cc Pump
  • Model Code 1：PVWF-360M07L00G1R01SKLASPC03A4
  • Model Code 2：C03A4K000V0000046200040
  • Sub brand：Hydrokraft
