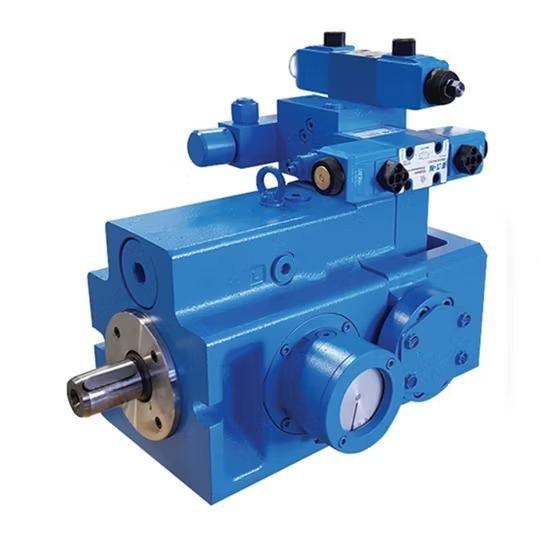

Vickers Hydrokraft heavy-duty open-circuit piston pumps PVX-130-R-LR-0000-000-10HYD-PI000A3005500000000000010 (spare parts avialable)

Vickers Hydrokraft heavy-duty open-circuit piston pumps PVX-130-R-LR-0000-000-10HYD-PI000A3005500000000000010 (spare parts avialable)

Contact us for a quote

Additional information

brand	Vickers
Model Number	PVX-130-R-LR-0000-000-10HYD-PI000A3005500000000000010
Part Number	HC806062043710
weight	106 kg
Spare Parts	Valve plate, shaft, Cylinder Block, Ball guid, Retainer plate, piston, Servo piston, Swash plate, Bearing, Seal kit…

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

Specification

Pump：Open loop pump
Displacement type：Variable
Series：X-series
Configuration：Single unit
Displacement：130 ccm/rev
Basic Standard：Metric
MOUNTING FLANGE：ISO3019/2 160A2SW
Rotation direction：Clockwise
Max displacement set：Max Disp Adj Screw
Thru drive options：None
Main port：SAE Port Metric Bolts
Main port orientation：Radial (side ports)
Main drive shaft end：ISO Straight key
Drive shaft seal config：Single shaft seal
Seal material：FKM
Yoke position indicator：No position indicator
Surface coating：Primer jet black RAL 9005
Control type：Power control
Disp adj options：Not applicable
Electronic amplifier：No amplifier card / n/a
Yoke displacement zone：Single side center A
Additional functions：Load sensing & Pre. limiter
Pressure control options：None (depends on control type)
Power control：kW at 1500 ppm
Pilot oil filter：None
V-valve_pilot oil sup：No venting valve
Position monitoring：Not applicable
Electric motor type：Not applicable
Control voltage：Not applicable
Customer adjustment：None
Special feature：None（值：NN）
Design number：per data spec. in D. table 10
Brand：Danfoss
IPM FRAME SIZE：PVX-130cc 10 design Pump
Model Code 1：PVX-130-R-LR-0000-000-10HYD-PI
Model Code 2：000A3005500000000000010
Sub brand：Hydrokraft
